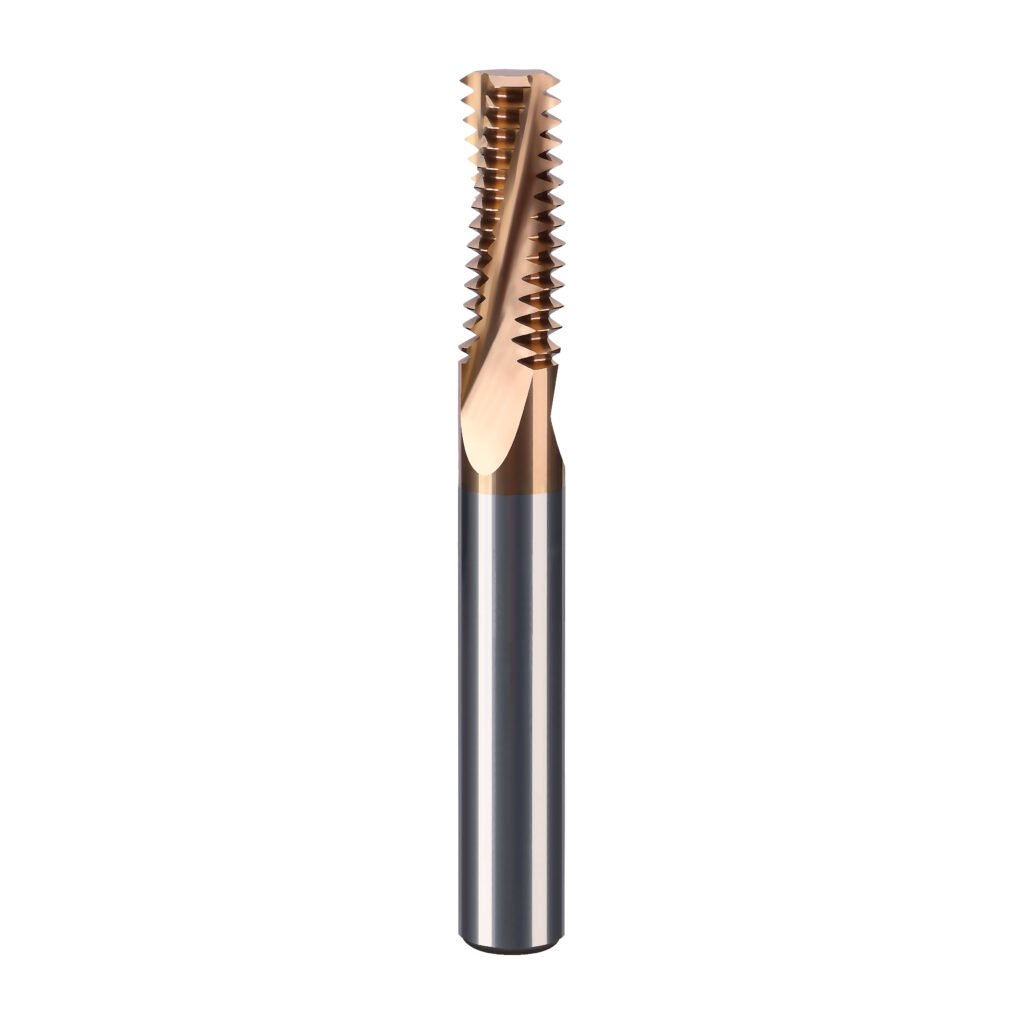

Thread Milling Cutter

American Standard UN Full Teeth Series

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

American Standard UN Full Teeth Series
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

TOOTH TYPE

Full Teeth

STANDARDS

American Standard UN

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
UNS UNC UNF 牙距 TPI 刃径D Cutting diameter 有效长度 L1 Effective Length 柄径d Shank diameter 总长 L Overall length 刃数 Flutes
UNC8-32*d4*50L-Q 32 3.2 11 4 50 3
UNFI0-32*d4*50L-Q 32 3.8 10 4 50 3
UNC6-32*d4*50L-Q 32 2.56 8 4 50 3
UNC10-24*d4*50L-Q 24 3.6 11 4 50 3
UNC4-40*d4*50L-Q 40 2.13 7 4 50 3
UNC2-56*d4*50L-Q 56 1.65 6 4 50 3
UNC1/4-20*d6*50L-Q 20 4.9 13 6 50 3
UNC5/16-18*d6*60L-Q 18 6 17 6 60 3
UNF/4-28*d6*50L-Q 28 4.6 15 6 50 3
UNS10-48*d6*65L-Q 48 4.1 12 6 65 3
UNF5/6-24*d6*60L-Q 24 5.9 17 6 60 3
UNC3/8-16*d8*65L-Q 16 7.65 20 8 65 3
UNC7/16-14*d8*60L-Q 14 7.6 23.6 8 60 4
UNF5/6-24*d8*65L-Q 24 6.88 21 8 65 3
UNF5/8-18*d8*65L-Q 18 7.95 20 8 65 4
UNF3/8-32*d8*65L-Q 32 7.9 20 8 65 4
UNF3/8-24*d8*65L-Q 24 7.4 20 8 65 4
UNF7/16-28*d8*60L-Q 28 7.9 20 8 60 4
UNF/2-20*dI0*75L-Q 20 9.9 25 10 75 4
UNF9/16-18*d10*75L-Q 18 10 30 10 75 4
UNF7/16-20*d10*75L-Q 20 8.5 23 10 75 4
UNF3/4-20*d10*75L-Q 20 9.95 25 10 75 4
UNC1/2-13*d10*75L-Q 13 9.5 25 10 75 4
UNF9/16-24*d12*75L-Q 24 11.9 30 12 75 4
UNC5/8-11*d12*83L-Q 11 11.95 35 12 83 4
UNF9/16-24*d12*83L-Q 18 11.95 30 12 83 4
UNF7/8-14*d12*75L-Q 14 12 30 12 75 4
UNC9/16-12*d12*75L-Q 12 11.8 28.6 12 75 4
UNC3/4-20*d12*75L-Q 20 11.9 30 12 75 4
UNF7/8-28*d12*75L-Q 28 12 25 12 75 4
UNF3/4-16*d12*75L-Q 16 12 28 12 75 4
UNC3/4-10*d16*100L-Q 10 14.5 40 16 100 5
UNC7/8- 9*d16*100L-Q 9 15.95 45 16 100 4
UNF3/4-28*d16*100L-Q 16 15.9 40 16 100 5
UNF7/8-14*d16*100L-Q 14 15.9 40 16 100 5
UNF1-12*d16*100L-Q 12 16 40 16 100 5
UNC1-8*d16*100L-Q 8 16 40 16 100 5
UNC1-8*d20*100L-Q 8 19.95 50 20 100 5
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C
