Thread Milling Cutter

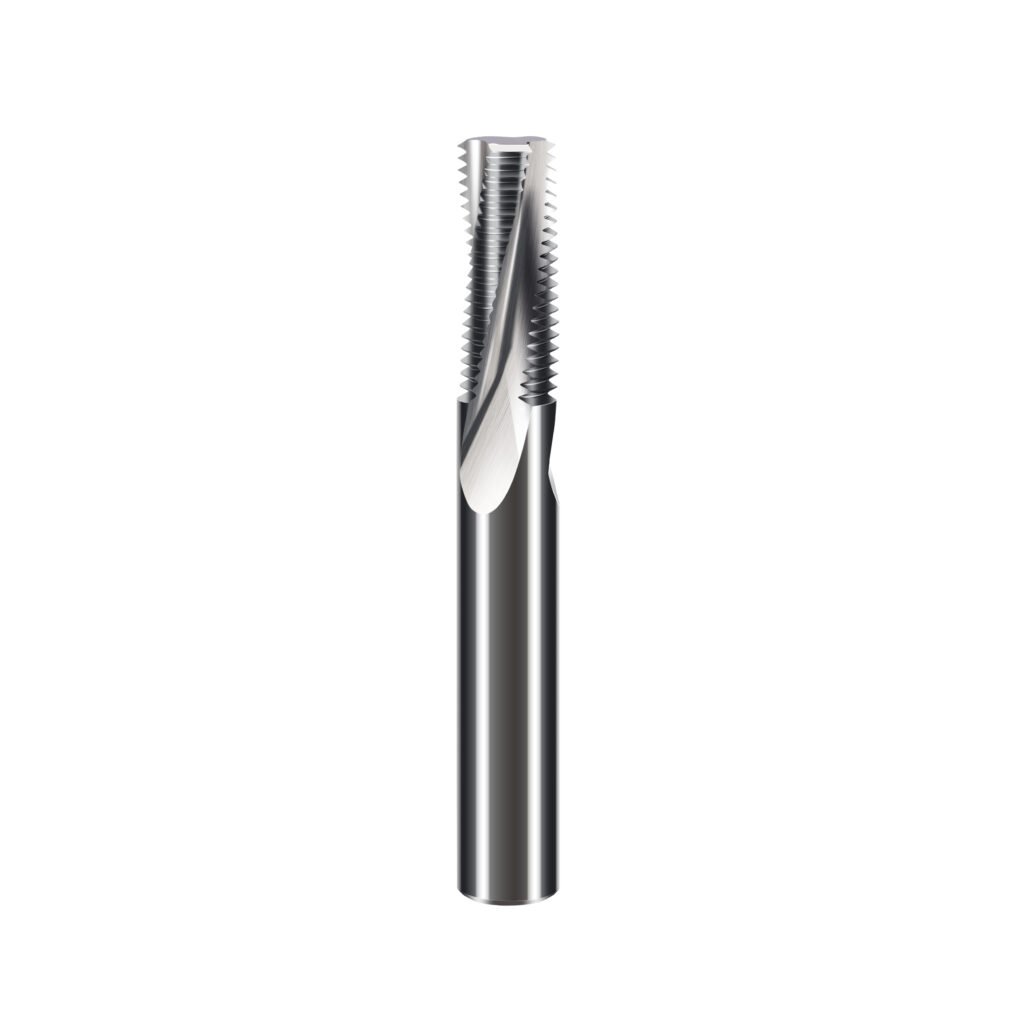

Full Teeth Thread Milling Cutter

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

Full Teeth Thread Milling Cutter
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

TOOTH TYPE

Full Teeth

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
粗牙 M Coarse teeth 细牙 Fine teeth 刃径D Cutting diameter 刃长 L1 Flute Length 柄径 d Shank diameter 总长L Overall length 底孔直径 Bottom hole diameter 刃数 Flutes
M1.6*0.35*d4*50L-Q 1.2 3.5 4 50 1.25 3
M2*0.4*d4*50L-Q 1.54 5 4 50 1.6 3
M2.5*0.45*d4*50L-Q 1.96 6 4 50 2.05 3
M3*0.5*d4*50L-Q 2.4 7.5 4 50 2.5 3
M3*0.6*d4*50L-Q 2.75 8.5 4 50 2.9 3
M4*0.5*d4*50L-Q 3 8 4 50 3.5 3
M4*0.7*d4*50L-Q 3.15 12 4 50 3.3 3
M4.5*0.75*d4*50L-Q 3.4 9 4 50 3.75 3
M5*0.5*d4*50L-Q 3.9 12 4 50 4.5 3
M5*0.8*d4*50L-Q 3.95 12 4 50 4.2 3
M5*0.8*d6*50L-Q 3.9 13 6 50 4.2 3
M6*0.5*d6*50L-Q 4.8 13 6 50 5.5 3
M6 *0.75*d4*50L-Q 3.9 12 4 50 5.25 3
M6 *0.75*d6*60L-Q 5 17 6 60 5.25 3
M6 *1.0*d4*50L-Q 3.95 12 4 50 5 3
M6*1.0*d6*50L-Q 4.75 15 6 50 5 3
M8*0.5*d6*60L-Q 5.9 16 6 60 7.5 3
M8*0.75*d6*60L-Q 5.95 15 6 60 7.25 3
M8*1.0*d6*60L-Q 5.95 15 6 60 7 3
M8*1.25*d6*60L-Q 5.9 18 6 60 6.75 3
M10*0.5*d8*65L-Q 7.9 20 8 65 9.5 4
M10*0.75*d8*65L-Q 7.9 22 8 65 9.25 4
M10*1.0*d8*65L-Q 7.95 22 8 65 9 4
M10*1.25*d8*65L-Q 7.9 20 8 65 8.75 4
M10*1.5*d8*65L-Q 7.7 22 8 65 8.5 4
M10*1.5*d8*75L-Q 7.7 25 8 75 8.5 4
M12*0.5*d10*75L-Q 9.95 25 10 75 11.5 4
M12*0.75*d10*75L-Q 9.95 20 10 75 11.25 4
M12*1.0*d10*65L-Q 9.9 20 10 65 11 4
M12*1.0*d10*75L-Q 9.9 28 10 75 11 4
M12*1.25*d10*75L-Q 9.9 25 10 75 10.75 4
M12*1.5*d10*75L-Q 9.4 24 10 75 10.5 4
M12*1.5*d10*65L-Q 9.9 20 10 65 10.5 4
M12*1.75*d10*75L-Q 9.5 25 10 75 10.25 4
M12*1.5*d10*100L-Q 9.95 30 10 100 10.5 4
M14*0.5*d12*75L-Q 12 30 12 75 13.5 4
M14*1.0*d12*75L-Q 11.9 30 12 75 13 4
M14*1.0*d12*83L-Q 11.9 32 12 83 13 4
M14*1.5*d10*75L-Q 9.9 25 10 75 12.5 4
M14*1.5*d12*75L-Q 11.2 30 12 75 12.5 4
M14*2.0*d10*75L-Q 9.9 30 10 75 12 4
M14*2.0*d12*75L-Q 11.2 30 12 75 12 4
M16*1.5*d12*75L-Q 12 30 12 75 14.5 4
M16*1.5*d12*83L-Q 11.9 36 12 83 14.5 4
M16*1.5*d14*83L-Q 13.9 33 14 83 14.5 4
M16*2.0*d12*75L-Q 11.9 30 12 75 14 4
M16*2.0*d12*82L-Q 12 35 12 83 14 4
M16*1.0*d14*100L-Q 13.9 33 14 100 15 4
M18*2.0*d14*100L-Q 13.9 33 14 100 16 4
M18*2.5*d14*100L-Q 13.9 33 14 100 13.5 5
M20*1.5*d16*100L-Q 15.95 40 16 100 14.5 5
M20*1.0*d16*100L-Q 16 40 16 100 19 5
M20*2.0*d16*100L-Q 15.95 40 16 100 18 5
M20*2.5*d16*100L-Q 15.9 40 16 100 17.5 5
M24*3.0*d16*100L-Q 15.9 40 16 100 21 5
M30*2.0*d20*100L-Q 20 40 20 100 28 5
M36*4.0*d20*100L-Q 20 40 20 100 32 5
M30*3.5*d16*100L-Q 15.9 40 16 100 26.5 5
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C
