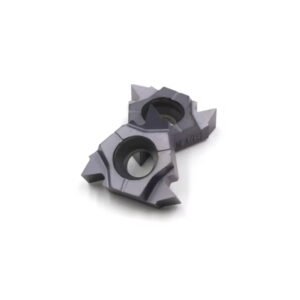

Threading Insert 60°/55°

TECHNICAL SPECIFICATIONS

Thread Standard 60_degree

PRECISION ENGINEERED

INDUSTRIAL GRADE PERFORMANCE

REQUEST QUOTE DOWNLOAD CATALOG

PRODUCT OVERVIEW

	刀片型号Model		D	加工螺距范围 Pitch		刀片尺寸 Dimension
	右旋螺纹 Right hand	左旋螺纹 Left hand	D	mm	TPI	L	X	Y
外螺纹 External	11ER A60		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16ER A60	16EL A60	3/8″	0.15~1.5	48~16	16	0.8	0.9
	16ER AG60	16EL AG60		0.5~3.0	48~8		1.2	1.7
	16ER G60	16EL G60		1.75~3.0	14~8		1.2	1.7
	22ER N60		1/2″	3.5~5.0	7~5	22	1.7	2.5
	27ER Q60		5/8″	5.5~6.0	4.5~4	27	2.1	3.1
内螺纹 Internal	06IR A60		5/32″			6
	08IR A60		3/16″			8
	11IR A60		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16IR A60	16IL A60	3/8″	0.15~1.5	48~16	16	0.8	0.9
	16IR AG60	16IL AG60		0.5~3.0	48~8		1.2	1.7
	16IR G60	16IL G60		1.75~3.0	14~8		1.2	1.7
	22IR N60		1/2″	3.5~5.0	7~5	22	1.7	2.5
	27IR Q60		5/8″	5.5~6.0	4.5~4	27	1.8	2.7
外螺纹 External	11ER A55		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16ER A55	16EL A55	3/8″	0.15~1.5	48~16	16	0.8	0.9
	16ER AG55	16EL AG55		0.5~3.0	48~8		1.2	1.7
	16ER G55	16EL G55		1.75~3.0	14~8		1.2	1.7
	22ER N55		1/2″	3.5~5.0	7~5	22	1.7	2.5
	27ER Q55		5/8″	5.5~6.0	4.5~4	27	2.1	3.1
内螺纹 Internal	06IR A55		5/32″			6
	08IR A55		3/16″			8
	11IR A55		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16IR A55	16IL A55	3/8″	0.15~1.5	48~16	16	0.8	0.9
	16IR AG55	16IL AG55		0.5~3.0	48~8		1.2	1.7
	16IR G55	16IL G55		1.75~3.0	14~8		1.2	1.7
	22IR N55		1/2″	3.5~5.0	7~5	22	1.7	2.5
	27IR Q55		5/8″	5.5~6.0	4.5~4	27	1.8	2.7
外螺纹 External	11ERMA60		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16ERM A60		3/8″	0.5~3.0	48~16	16	0.8	0.9
	16ERM AG60			1.75~3.0	48~8		1.2	1.7
	16ERM G60			3.5~5.0	14~8		1.2	1.7
	22ERM N60		1/2″	5.5~6.0	7~5	22	1.7	2.5
内螺纹 Internal	11IRM A60		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16IRM A60		3/8″	0.15~1.5	48~16	16	0.8	0.9
	16IRM AG60			0.5~3.0	48~8		1.2	1.7
	16IRM G60			1.75~3.0	14~8		1.2	1.7
	22IRM N60		1/2″	3.5~5.0	7~5	22	1.7	2.5
外螺纹 External	11ERM A55		1/4″	0.15~1.5	48~16	11	0.8	0.9
	16ERM A55		3/8″	0.15~1.5	48~16	16	0.8	0.9
	16ERMAG55			0.5~3.0	48~8		1.2	1.7
	16ERM G55			1.75~3.0	14~8		1.2	1.7
	22ERM N55		1/2″	3.5~5.0	7~5	22	1.7	2.5
内螺纹 Internal	11IRM A55		1/ 4″	0.15~1.5	48~16	11	0.8	0.9
	16IRM A55		3/8″	0.15~1.5	48~16	16	0.8	0.9
	16IRM AG55			0.5~3.0	48~8		1.2	1.7
	16IRM G55			1.75~3.0	14~8		1.2	1.7
	22IRM N55		1/2″	3.5~5.0	7~5	22	1.7	2.5
