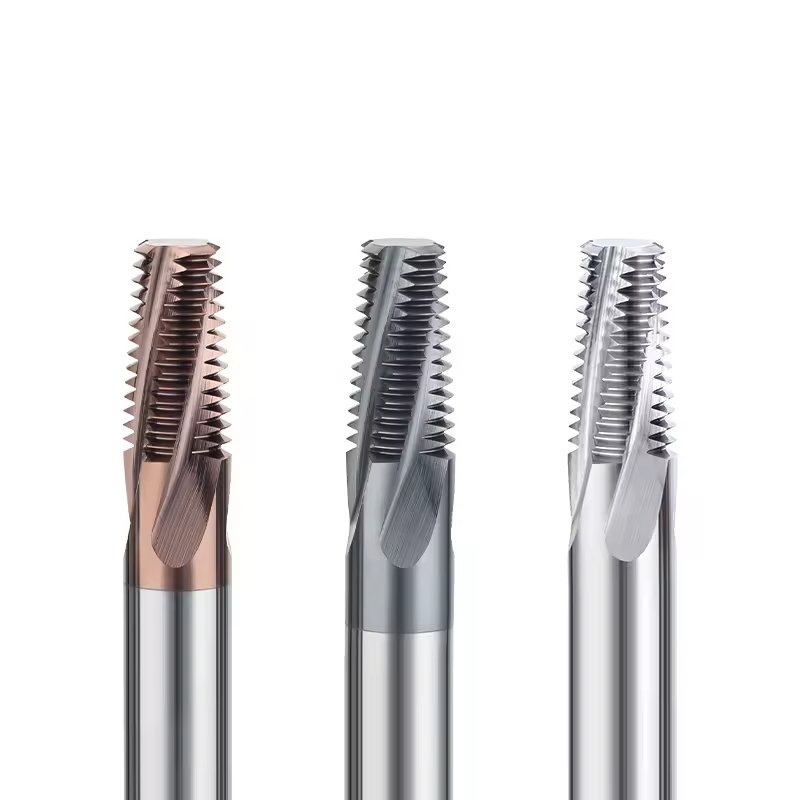

Thread Milling Cutter

Pipe Thread Series-NPTF

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

Pipe Thread Series-NPTF
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

STANDARDS

NPTF

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
NPTF型号 NPTF model 刃径D Cutting diameter 刃长 L1 Flute length 柄径 d Shank diameter 总长L Overall length 刃数 Flutes 底孔直径 Bottom hole diameter
NPTF1/16-27*d6*50L-Q 5.9 10 6 50 3 6.3
NPTF1/8-27*d8*60L-Q 7.65 15 8 60 4 8.4
NPTF1/4-18*d10*75L-Q 9.9 14.8 10 75 4 11.1
NPTF3/8-18*d12*75L-Q 11.15 14.8 12 75 4 14.7
NPTF1/2-14*d16*100L-Q 15.95 25 16 100 5 17.9
NPTF1-11.5*d20*100L-Q 19.6 23 20 100 5 29
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C
