Thread Milling Cutter

Pipe Thread Series-ＲＣ(BSPT)

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

Pipe Thread Series-ＲＣ(BSPT)
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

STANDARDS

RC (BSPT)

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
RC(BSPT)型号
RC(BSPT) model		 刃径D Cutting diameter 刃长 L1 Flute Length 柄径 d Shank diameter 总长L Overall length 刃数 Flutes 底孔直径 Bottom hole diameter
RC1/16-28*12*d6*60L-Q 5.8 12 6 60 3 6.7
RC1/8-28*20*d8*65L-Q 7.9 20 8 65 3 8.7
RC1/8-28*15*d8*60L-Q 7.95 15 8 60 4 8.7
RC1/4-19*26.7*d10*75L-Q 9.9 26.7 10 75 4 11.8
RC1/4-19*20*d10*75L-Q 9.95 20 10 75 4 11.8
RC3/8-19*30*d12*75L-Q 11.9 30 12 75 4 15.2
RC3/8-19*20*d12*75L-Q 11.9 20 12 75 4 15.2
RC1/2-14*33*d12*83L-Q 11.9 33 12 83 4 19
RC1/2-14*25*d12*75L-Q 11.9 25 12 75 4 19
RC1/2-14*40*d16*100L-Q 15.9 40 16 100 5 19
RC1/2-14*30*d16*100L-Q 15.9 30 16 100 5 19
RC3/4-14*33*d12*83L-Q 11.9 33 12 83 4 19
RC3/4-14*25*d16*100L-Q 11.9 25 12 75 4 19
RC3/4-14*40*d16*100L-Q 15.9 40 16 100 5 19
RC3/4-14*30*d16*100L-Q 15.9 30 16 100 5 19
RC1-11*42*d16*100L-Q 15.9 42 16 100 5 30.7
RC1-11*30*d16*100L-Q 15.9 30 16 100 5 30.7
RC1-11*41.5*d20*100L-Q 19.9 41.5 20 100 5 30.7
RC1-11*35*d20*100L-Q 19.9 35 20 100 5 30.7
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C

RELATED PRODUCTS

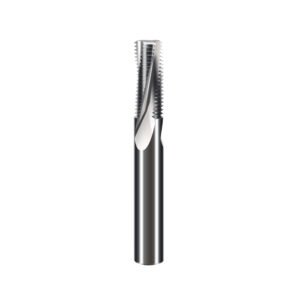

Full Teeth Thread Milling Cutter
