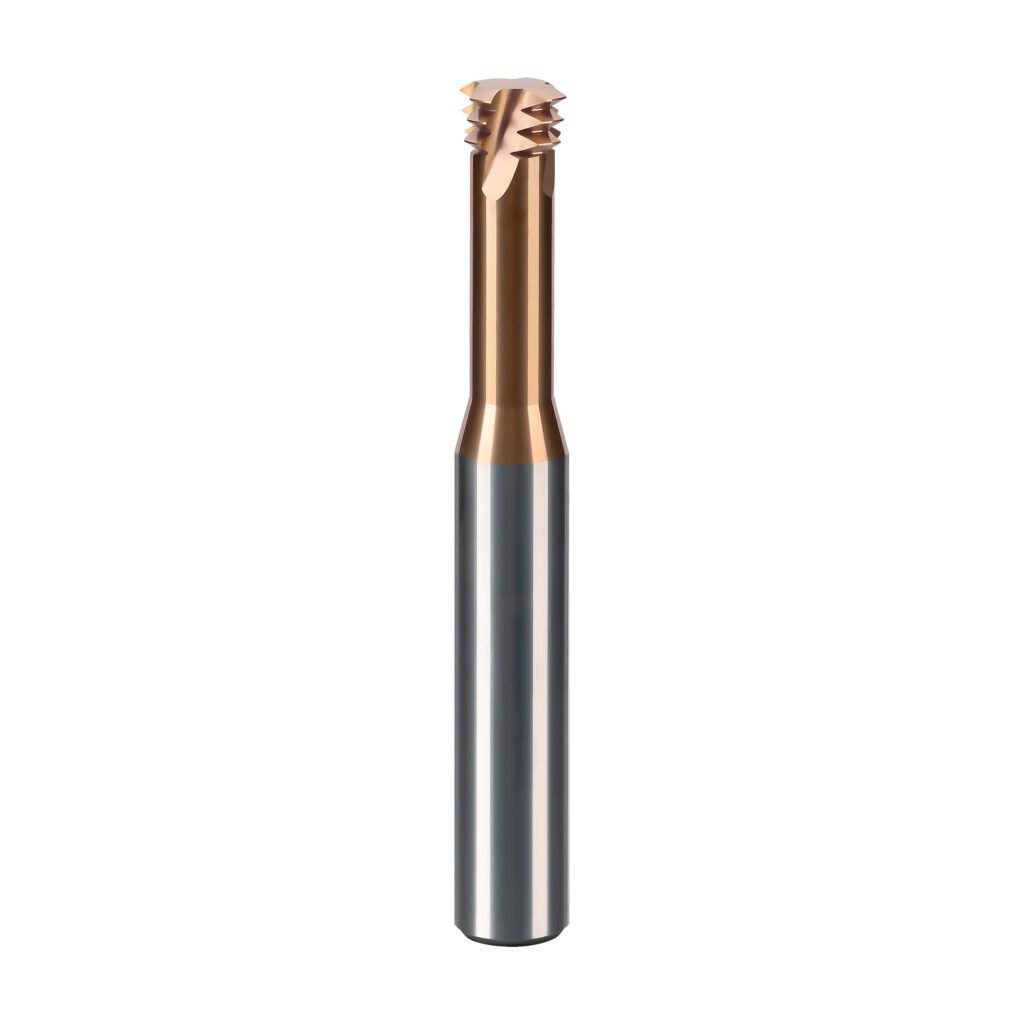

Thread Milling Cutter

American Standard UN Three Teeth Series

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

American Standard UN Three Teeth Series
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

TOOTH TYPE

Three Teeth

STANDARDS

American Standard UN

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
NS UNC UNF 牙距 TPI 刃径D Cutting diameter 有效长度 L1 Effective Length 柄径 d Shank diameter 总长L Overall length 刃数 Flutes
UNC1-64*d4*50L-S UNF2-64*d4*50L-S 64 1.4 4 4 50 3
UNFl-72*d4*50L-S 72 1.44 3.8 4 50 3
UNFO-80*d4*50L-S 80 1.18 3.5 4 50 3
UNC3-48*d4*50L-S UNF4-48*d4*50L-S 48 1.9 5 4 50 3
UNC8-36*d4*50L-S 36 3.31 11 4 50 3
UNC10-24*d4*50L-S 24 3.58 11 4 50 3
UNF10-32*d4*50L-S 32 3.8 12 4 50 3
UNC2-56*d4*50L-S UNF3-56*d4*50L-S 56 1.65 5 4 50 3
UNC6-32*d4*50L-S 32 2.56 7.5 4 50 3
UNC4-40*d4*50L-S 40 2.13 6 4 50 3
UNC4-40*d4*50L-S 40 2.13 8.2 4 50 3
UNC8-32*d4*50L-S 32 3.2 11 4 50 3
UNC5-40*d4*50L-S UNF6-40*d4*50L-S 40 2.46 8 4 50 3
UNF1/4-28*d6*50L-S 28 5 15 6 50 3
UNC5/16-24*d6*50L-S 24 5.95 18 6 50 3
UNC1/4-20*d6*50L-S 20 4.87 14 6 50 3
UNS1/4-36*d6*50L-S 36 5 12 6 50 3
UNC5/6-18*d6*50L-S 18 5.9 18 6 50 3
UNC3/8-16*d8*60L-S 16 7.65 20 8 60 3
UNC5/16-24*d8*65L-S 24 6.88 21 8 65 3
UNF3/8-24*d8*60L-S 24 7.4 20 8 60 4
UNC1/2-13*d10*75L-S 13 9.9 25 10 75 4
UNF7/16-20*dI0*75L-S 20 9.5 28 10 75 4
UNC7/16-14*d10*75L-S 14 9 28 10 75 4
UNF9/16-18*d12*75L-S 18 11.9 30 12 75 4
UNF9/16-24*d12*75L-S 24 11.9 29 12 75 4
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C
