Thread Milling Cutter

American Standard UN Single Tooth Series

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

American Standard UN Single Tooth Series
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

TOOTH TYPE

Single Tooth

STANDARDS

American Standard UN

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
UNC UNF 牙距 TPI 刃径D Cutting diameter 有效长度 L1 Effective Length 柄径 d Shank diameter 总长L Overall length 刃数 Flutes
UNC4-40*d4*50L-D 40 2.13 8.2 4 50 3
UNC6-32*d4*50L-D 32 2.56 7.4 4 50 3
UNC10-32*d4*50L-D 32 3.8 10 4 50 3
UNC8-32*d4*50L-D 32 3.2 11 4 50 3
UNF1/4-28*d6*L-D 28 5 16 6 50 4
UNC1/4-20*d6*50L-D 20 4.8 16 6 50 4
UNC5/16-18*d6*50L-D 18 6 16 6 50 4
UNC3/8-16*d8*60L-D 16 7.7 20 8 60 4
UNF3/8-24*d8*L-D 24 8 25 8 60 4
UNC1/2-13*d10*75L-D 13 10 30 10 75 5
UNF9/16-18*d12*L-D 18 12 35 12 75 5
UNF3/4-16*d12*L-D 16 12 35 12 75 5
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C

RELATED PRODUCTS

Pipe Thread Series-ＲＣ(BSPT)

Pipe Thread Series-ＲＣ(BSPT)

RC(BSPT)型号 RC(BSPT) model 刃径D Cutting diameter 刃长 L1 Flute Length 柄径 d Shank diameter 总长L…

VIEW DETAILS

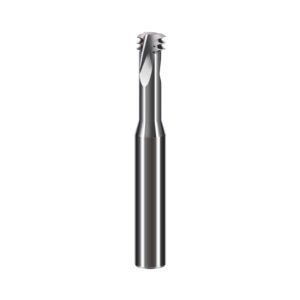

American Standard UN Three Teeth Series
