Thread Milling Cutter

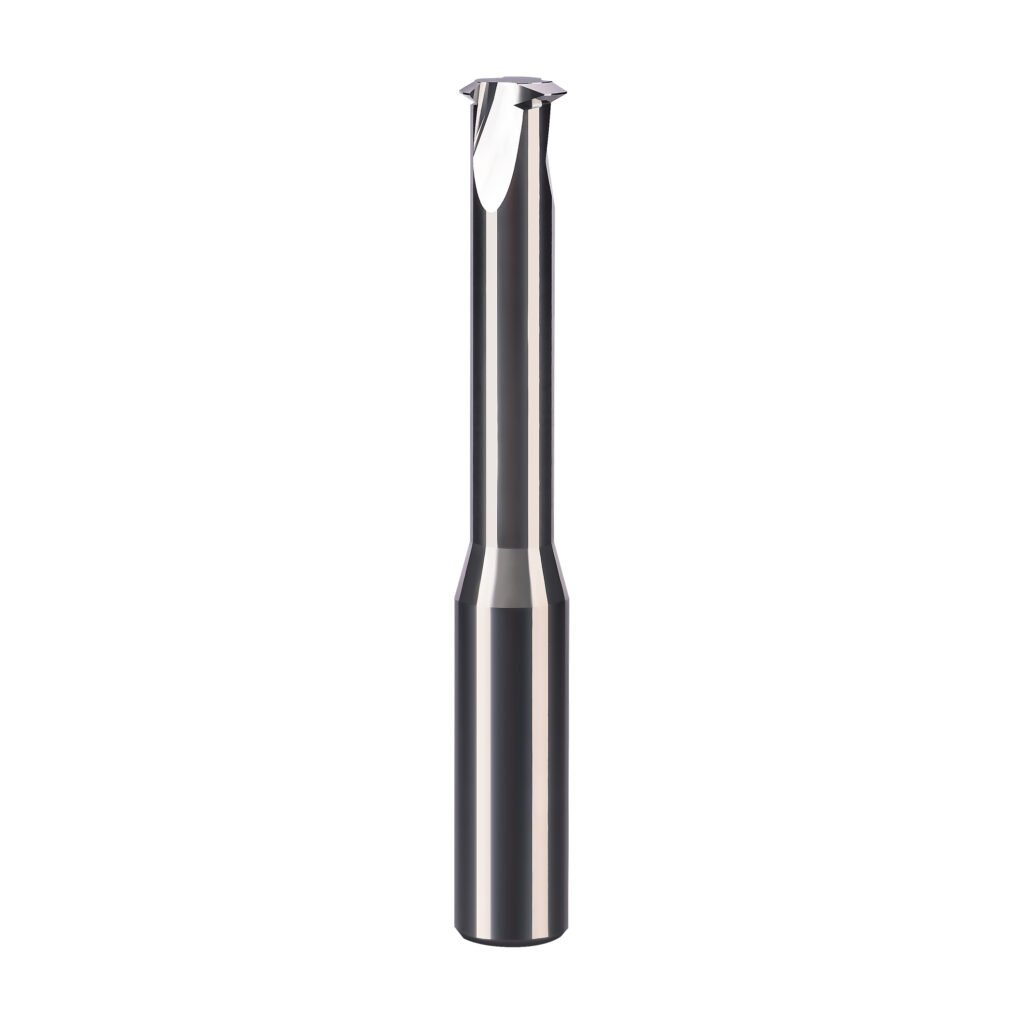

30 ° T-shaped Thread

High-precision thread milling cutter engineered for superior performance in demanding machining applications.

30 ° T-shaped Thread
PRECISION
±0.001"

TECHNICAL SPECIFICATIONS

TOOTH TYPE

Single Tooth

PRODUCT OVERVIEW

PRECISION
±0.001"
QUALITY
ISO 9001
HARDNESS
92+ HRA
型号 Model 角度 Angle 刃径D Cutting diameter 有效长度 L1 Effective length 柄径d Shank diameter 总长L Overall length
TR8*1.5*d6*50L-D 30° 5.95 20 6 50
TR9*1.5*d6*50L-D
TR9*2*d8*60L-D 30° 6.4 20 8 60
TR10*2*d8*60L-D
TR11*2*d8*60L-D
TR12*2*d10*75L-D 30° 9.4 35 10 75
TR14*2*d10*75L-D
TR16*2*d10*75L-D
TR18*2*d10*75L-D
TR20*2*d10*75L-D
TR11*3*d8*60L-D 30° 7.4 25 8 60
TR12*3*d8*60L-D
TR14*3*d8*60L-D
TR14*3*d10*75L-D 30° 10 35 10 75
TR22*3*d10*75L-D
TR24*3*d10*75L-D
TR26*3*d10*75L-D
TR28*3*d10*75L-D
TR30*3*d10*75L-D
TR16*4*d12*75L-D 30° 11 35 12 75
TR18*4*d12*75L-D
TR20*4*d12*75L-D
TR22*5*d14*100L-D 30° 14 50 14 100
TR24*5*dl4*100L-D
TR26*5*d14*100L-D
TR28*5*d14*100L-D
ENGINEERED FOR PRECISION
INDUSTRIAL GRADE PERFORMANCE
GLOBAL QUALITY STANDARDS

KEY FEATURES & BENEFITS

SUPERIOR HARDNESS

Advanced carbide composition delivers exceptional wear resistance and extended tool life in demanding thread milling operations.

HARDNESS 92+ HRA

PRECISION THREADING

Micro-ground cutting edges ensure consistent thread quality with tolerances within ±0.001" for critical applications.

TOLERANCE ±0.001"

THERMAL STABILITY

Advanced coating technology maintains cutting performance and thread quality under extreme thermal conditions.

MAX TEMP 1000°C
