PRECISION ENGINEERED

Carbide Straight fluted tap

Professional grade cutting tool engineered for precision machining applications with superior performance and durability.

Carbide Straight fluted tap
ISO 9001
CERTIFIED

TECHNICAL SPECIFICATIONS

Engineered with precision and built to deliver exceptional performance in demanding machining applications.

Product Specifications

Quality Standard ISO 9001:2015

Superior Performance

Advanced carbide composition and precision grinding deliver exceptional cutting performance and extended tool life.

Precision Engineering

Manufactured to strict tolerances using state-of-the-art CNC grinding technology for consistent quality.

Heat Resistance

Advanced coating technology provides thermal stability for high-speed machining operations.

PRODUCT DETAILS

型号 Model 公称直径D Nominal diameter 柄径d Shank diameter L1 总长L Overall length 方头 : Square head
a L2
M2x0.4 2 3 9 50 2.5 5
M2.5×0.45 2.5 3 10 50 2.5 5
M3x0.5 3 3 11 50 2.5 5
M3.5×0.6 3.5 3.55 13 50 2.8 5
M4x0.7 4 4 13 50 3.15 6
M4x0.5 4 4 13 50 3.15 6
M5x0.8 5 5 16 55 3.15 7
M5x0.5 5 5 16 55 3.15 7
M6x1.0 6 6 19 65 3.55 8
M6 x0.75 6 6 19 65 3.55 8
M6x0.5 6 6 19 65 3.55 8
M8x1.25 8 6.3 22 70 5 8
M8x1.0 8 6.3 22 70 5 8
M8x0.75 8 6.3 22 70 5 8
M8x0.5 8 6.3 22 70 5 8
M10x1.5 10 8 24 75 6.3 9
M10x1.25 10 8 24 75 6.3 9
M10x1.0 10 8 24 75 6.3 9
M12x1.75 12 9 29 80 7.1 10
M12x1.5 12 9 29 80 7.1 10
M12x1.25 12 9 29 80 7.1 10
M12x1.0 12 9 29 80 7.1 10
M12x0.75 12 9 29 80 7.1 10
M14x2.0 14 11 30 95 9 12
M14x1.5 14 11 30 95 9 12
M14x1.25 14 11 30 95 9 12
M14x1.0 14 11 30 95 9 12
M16x2.0 16 12.5 32 100 10 13
M16x1.5 16 12.5 32 100 10 13
M16x1.0 16 12.5 32 100 10 13
M18x2.5 18 14 37 110 11.2 14
M18x1.5 18 14 37 110 11.2 14
M18x1.0 18 14 37 110 11.2 14
M20x2.5 20 15 37 110 11.2 14
M20x2.0 20 15 37 110 11.2 14
M20x1.5 20 15 37 110 11.2 14
M20x1.0 20 15 37 110 11.2 14

RELATED PRODUCTS

Explore our complete range of precision cutting tools

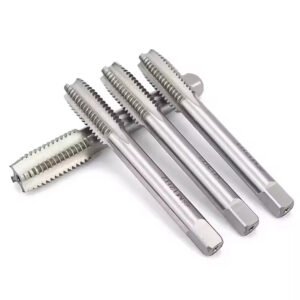

Carbide Extrusion taps

Carbide Extrusion taps

VIEW DETAILS
R 55° /ZG/BSPT Taper Pipe Thread Tap

R 55° /ZG/BSPT Taper Pipe Thread Tap

VIEW DETAILS

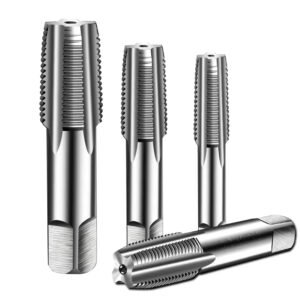

NPT60°/Z Taper Pipe Thread Tap
