PRECISION ENGINEERED

BSP/G55° Taper Pipe Thread Tap

Professional grade cutting tool engineered for precision machining applications with superior performance and durability.

BSP/G55° Taper Pipe Thread Tap
ISO 9001
CERTIFIED

TECHNICAL SPECIFICATIONS

Engineered with precision and built to deliver exceptional performance in demanding machining applications.

Product Specifications

Quality Standard ISO 9001:2015

Superior Performance

Advanced carbide composition and precision grinding deliver exceptional cutting performance and extended tool life.

Precision Engineering

Manufactured to strict tolerances using state-of-the-art CNC grinding technology for consistent quality.

Heat Resistance

Advanced coating technology provides thermal stability for high-speed machining operations.

PRODUCT DETAILS

型号 Model 基本直径 D Basic diameter 柄径d Shank diameter L1 总长L Overall length a L2
G1/16-28 RP1/16-28 7.723 5.6 14 52 4.5 7
G1/8-28 RP1/8-28 9.728 8 15 59 6.3 9
G1/4-19 RP1/4-19 13.157 10 19 67 8 11
G3/8-19 RP3/8-19 16.662 12.5 21 75 10 13
G1/2-14 RP1/2-14 20.955 16 26 87 12.5 16
G5/8-14 – 22.911 18 26 91 14 18
G3/4-14 RP3/4-14 26.441 20 28 96 16 20
G7/8-11 – 30.201 22.4 29 102 18 22
G1-11 RP1-11 33.249 25 33 109 20 24
G1-1/8-11 – 37.897 28 34 116 22.4 26
G1-1/4-11 RP1-1/4-11 41.91 31.5 36 119 25 28
G1-1/2-11 RP1-1/2-11 47.803 35.5 37 125 28 31
G1-3/4-11 – 53.746 35.5 39 132 28 31
G2-11 RP2-11 59.614 40 41 140 31.5 34
G2-1/4-11 – 65.71 40 42 142 31.5 34
G2-1/2-11 RP2-1/2-11 75.184 45 45 153 35.5 38
G2-3/4-11 – 81.534 50 46 163 40 42
G3-11 RP3-11 87.884 50 48 164 40 42
G3-1/2-11 RP3-1/2-11 100.33 63 50 173 50 51
G4-11 RP4-11 113.03 71 53 185 50 56

RELATED PRODUCTS

Explore our complete range of precision cutting tools

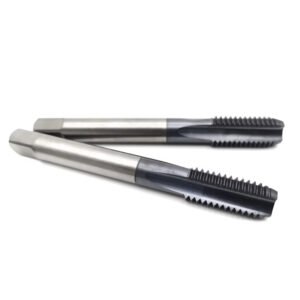

Carbide Straight fluted tap
