Swiss-type Lathe Cutting Insert GBA43R/L

Technical Specifications

Product Details

Material Tungsten Carbide
Quality Standard ISO 9001:2015
Performance Guarantee
High Precision Manufacturing

Superior Hardness

Advanced carbide composition for exceptional wear resistance and extended tool life.

Precision Geometry

Micro-ground cutting edges ensure consistent surface finishes and dimensional accuracy.

Heat Resistance

Advanced coating technology maintains performance under extreme machining conditions.

Product Overview

型号 Model 尺寸 Dimension
D t d W G  R
GBA32L050-005 9.525 3.18 4.4 0.50 1.0 0.05
GBA32L100-005 1.00 2.0
GBA32L110-005 1.10
GBA32L120-005 1.20
GBA32L125-020 1.25 0.2
GBA32L145-020 1.45
GBA32L150-020 1.50
GBA32L175-020 1.75
GBA32L185-020 1.85
GBA32L200-020 2.00 2.5
GBA32L250-020 2.50
GBA32L300-020 3.00
GBA32R050-005 0.50 1.0 0.05
GBA32R100-005 1.00 2.0
GBA32R110-005 1.10
GBA32R120-005 1.20
GBA32R125-020 1.25 0.2
GBA32R145-020 1.45
GBA32R150-020 1.50
GBA32R175-020 1.75
GBA32R185-020 1.85
GBA32R200-020 2.00 2.5
GBA32R250-020 2.50
GBA32R300-020 3.00
GBA43R125-010 12.7 4.76 5.4 1.25 2.2 0.1
GBA43R140-020 1.40 3.5
GBA43R145-020 1.45
GBA43R150-020 1.50 0.2
GBA43R170-020 1.70
GBA43R175-020 1.75
GBA43R185-020 1.85
GBA43R195-020 1.95
GBA43R200-020 2.00
GBA43R225-020 2.25
GBA43R230-020 2.30
GBA43R250-030 2.50 5.0
GBA43R265-030 2.65
GBA43R280-030 2.80
GBA43R300-030 3.00 0.3
GBA43R325-030 3.25
GBA43R330-030 3.30
GBA43R350-030 3.50
GBA43R400-040 4.00
GBA43R430-040 4.30
GBA43R450-040 4.50
GBA43L125-010 12.7 4.76 5.4 1.25 2.2 0.1
GBA43L140-020 1.40 3.5
GBA43L145-020 1.45
GBA43L150-020 1.50 0.2
GBA43L170-020 1.70
GBA43L175-020 1.75
GBA43L185-020 1.85
GBA43L195-020 1.95
GBA43L200-020 2.00
GBA43L225-020 2.25
GBA43L230-020 2.30
GBA43L250-030 2.50 5.0
GBA43L265-030 2.65
GBA43L280-030 2.80
GBA43L300-030 3.00 0.3
GBA43L325-030 3.25
GBA43L330-030 3.30
GBA43L350-030 3.50
GBA43L400-040 4.00
GBA43L430-040 4.30
GBA43L450-040 4.50

Related Products

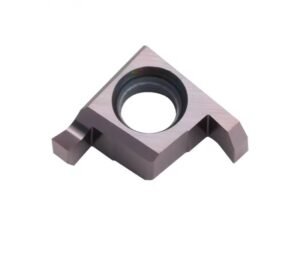

Swiss-type Lathe Cutting Insert GER

Swiss-type Lathe Cutting Insert GER

型号 Model 尺寸 Dimension W CDX R GER100-005A 1.00 1.5 0.05 GERI50-010A 1.50 0.1 GER200-010A 2.00 GER100-005B 1.00 2.2 0.05…

View Details

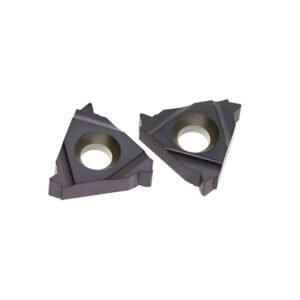

Swiss-type Lathe Cutting Insert TER/TNR

Swiss-type Lathe Cutting Insert TER/TNR

型号 Model 尺寸 Dimension L W±0.03 G D T TER16080 16 0.80 2.0 9.525 3.65 TER16090 0.91 TER16100 1.00 TERI6105…

View Details

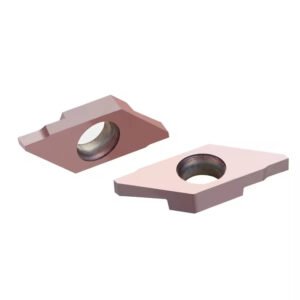

Swiss-type Lathe Cutting Insert TGF/TKF/PENTA24N
