Swiss-type Lathe Cutting Insert ABS/CTP/CTPA/FC1604R

Request Quote Contact Us
Swiss-type Lathe Cutting Insert ABS/CTP/CTPA/FC1604R

Technical Specifications

Product Details

Material Tungsten Carbide
Quality Standard ISO 9001:2015
Performance Guarantee
High Precision Manufacturing

Superior Hardness

Advanced carbide composition for exceptional wear resistance and extended tool life.

Precision Geometry

Micro-ground cutting edges ensure consistent surface finishes and dimensional accuracy.

Heat Resistance

Advanced coating technology maintains performance under extreme machining conditions.

Product Overview

型号 Model 尺寸 Dimension
L W S R
ABS15R4005 15.4 7.0 3.97 0.05
ABS15R4015 15.4 7.0 3.97 0.15
ABW23R5005 23.4 7.0 3.97 0.05
ABW23R5015 23.4 7.0 3.97 0.15
型号 Model 尺寸 Dimension
R W L C Dmax
CTP0.5FR 0.05 0.5 4.5 16° 5
CTP0.7FR 0.7 4.5 16° 8
CTP1.0FR 1.0 6.5 16° 12
CTP1.5FR 1.5 6.5 16° 12
CTP2.0FR 2 6.5 16° 12
CTP0.5FRN 0.5 4.5 0 5
CTP0.7FRN 0.7 4.5 0 8
CTP1.0FRN 1.0 6.5 0 12
CTP1.5FRN 1.5 6.5 0 12
CTP2.0FRN 2.0 6.5 0 12
CTP0.5FL 0.5 4.5 16° 5
CTP0.7FL 0.7 4.5 16° 8
CTP1.0FL 1.0 6.5 16° 12
 CTP1.5FL 1.5 6.5 16° 12
CTP2.0FL 2 6.5 16° 12
 CTP0.5FLN 0.5 4.5 0 5
CTP0.7FLN 0.7 4.5 0 8
CTP1.OFLN 1.0 6.5 0 12
CTP1.5FLN 1.5 6.5 0 12
CTP2.0FLN 2.0 6.5 0 12
CTPA0.5FR 0.05 0.5 6.5 16° 5
CTPA0.7FR 0.7 6.5 16° 8
CTPA1.0FR 1.0 6.5 16° 12
CTPA1.5FR 1.5 7.5 16° 12
CTPA2.0FR 2.0 7.5 16° 12
CTPA0.5FRN 0.5 6.5 0 5
CTPA0.7FRN 0.7 6.5 0 8
CTPA1.0FRN 1.0 6.5 0 12
CTPA1.2FRN 1.2 7.5 0 12
CTPA1.5FRN 1.5 7.5 0 12
CTPA2.0FRN 2.0 7.5 0 12
CTPA0.5FL 0.5 6.5 16° 5
CTPA0.7FL 0.7 6.5 16° 8
CTPA1.0FL 1.0 6.5 16° 12
CTPA1.5FL 1.5 7.5 16° 12
CTPA2.0FL 2.0 7.5 16° 12
CTPA0.5FLN 0.5 6.5 0 5
CTPA0.7FLN 0.7 6.5 0 8
CTPA1.0FLN 1.0 6.5 0 12
CTPA1.2FLN 1.2 7.5 0 12
CTPA1.5FLN 1.5 7.5 0 12
CTPA2.0FLN 2.0 7.5 0 12
型号 Model 尺寸 Dimension
W B A S L
FC1604R100 1 2 9.5 5.7 24
FC1604R150 1.5 2.2
FC1604R200 2 2.2
FC1604R250 2.5 2.2
FC1604R300 3 2.3

Related Products

Swiss-type Lathe Cutting Insert TER/TNR

Swiss-type Lathe Cutting Insert TER/TNR

型号 Model 尺寸 Dimension L W±0.03 G D T TER16080 16 0.80 2.0 9.525 3.65 TER16090 0.91 TER16100 1.00 TERI6105…

View Details
Swiss-type Lathe Cutting Insert-GR

Swiss-type Lathe Cutting Insert-GR

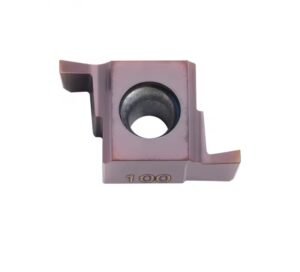

型号 Model 尺寸 Dimension W A B T D L R 6GR100 1.0 4.76 6.4 2.34 2.3 5.56 0.2 6GR110…
