SWISS-TYPE LATHE INSERTS

Precision-engineered carbide inserts designed for Swiss-type automatic lathes, delivering exceptional performance in high-volume production environments with superior surface finish and dimensional accuracy.

PRECISION
±0.0001"
HARDNESS
93 HRA
COATING
TiAlN
6 Products Found

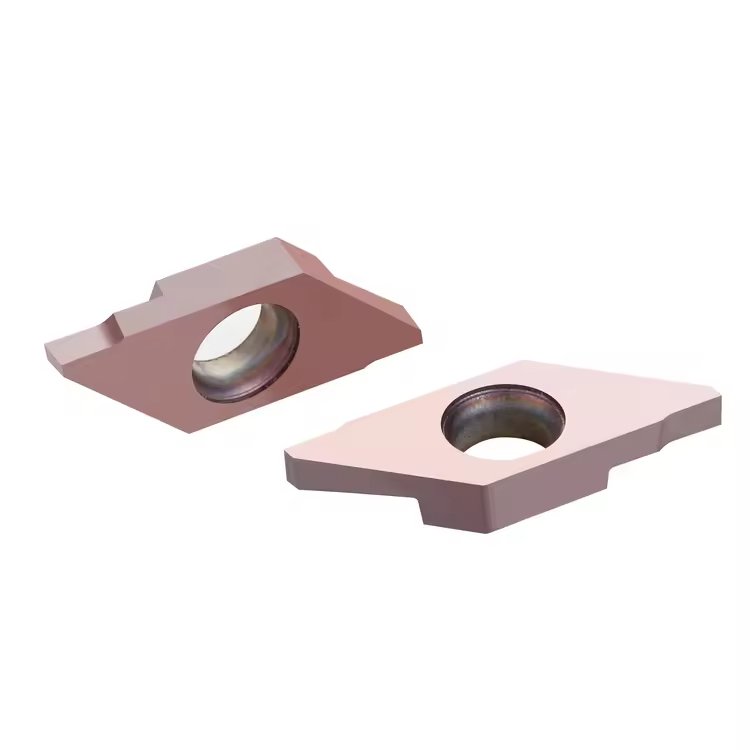

Swiss-type Lathe Cutting Insert TGF/TKF/PENTA24N

Swiss-type Lathe Cutting Insert TGF/TKF/PENTA24N

型号 Model 尺寸 Dimension L W G D d  t TGF32R050-005 16 0.50 1.3 3/8 4.4 3.18  TGF32R075-010 0.75 1.9...

SPECIFICATIONS
Swiss-type Lathe Cutting Insert TER/TNR

Swiss-type Lathe Cutting Insert TER/TNR

型号 Model 尺寸 Dimension L W±0.03 G D T TER16080 16 0.80 2.0 9.525 3.65 TER16090 0.91 TER16100 1.00 TERI6105...

SPECIFICATIONS
Swiss-type Lathe Cutting Insert GER

Swiss-type Lathe Cutting Insert GER

型号 Model 尺寸 Dimension W CDX R GER100-005A 1.00 1.5 0.05 GERI50-010A 1.50 0.1 GER200-010A 2.00 GER100-005B 1.00 2.2 0.05...

SPECIFICATIONS

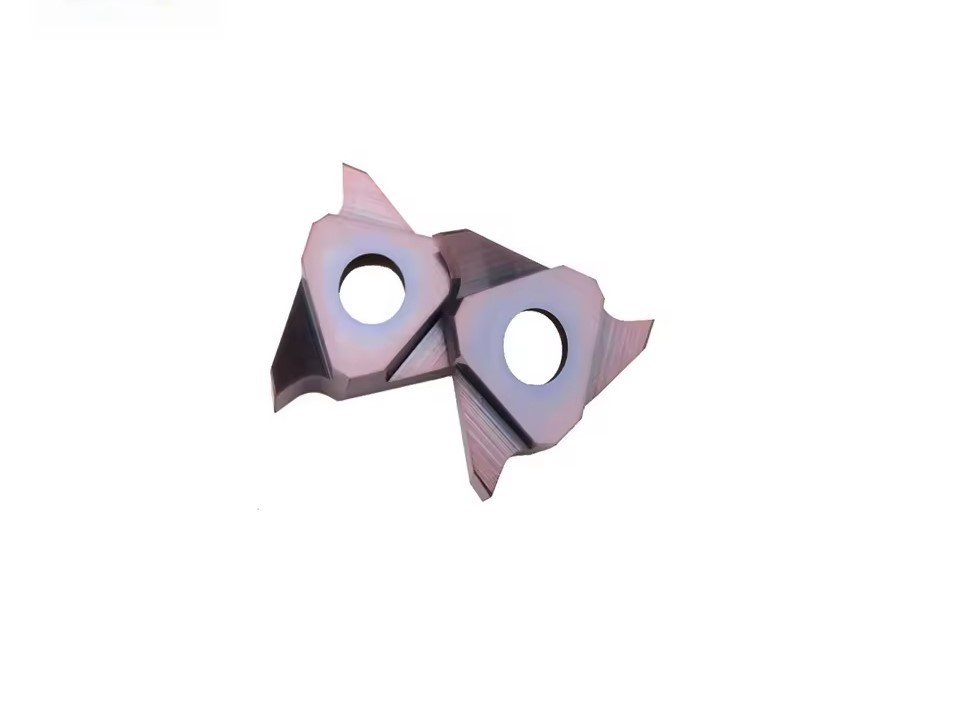

Swiss-type Lathe Cutting Insert GBA43R/L

Swiss-type Lathe Cutting Insert GBA43R/L

型号 Model 尺寸 Dimension D t d W G  R GBA32L050-005 9.525 3.18 4.4 0.50 1.0 0.05 GBA32L100-005 1.00 2.0...

SPECIFICATIONS

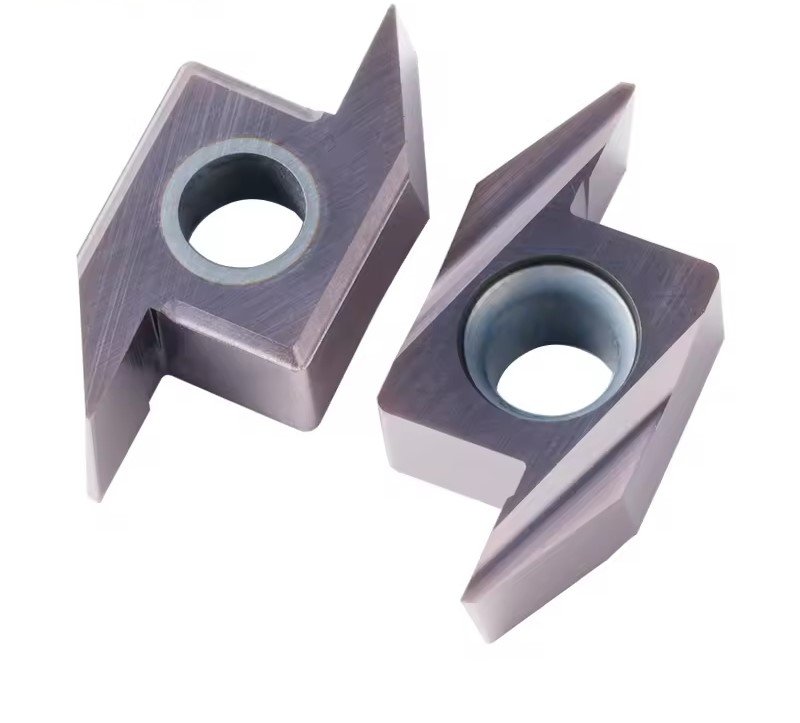

Swiss-type Lathe Cutting Insert ABS/CTP/CTPA/FC1604R

Swiss-type Lathe Cutting Insert ABS/CTP/CTPA/FC1604R

型号 Model 尺寸 Dimension L W S R ABS15R4005 15.4 7.0 3.97 0.05 ABS15R4015 15.4 7.0 3.97 0.15 ABW23R5005 23.4...

SPECIFICATIONS

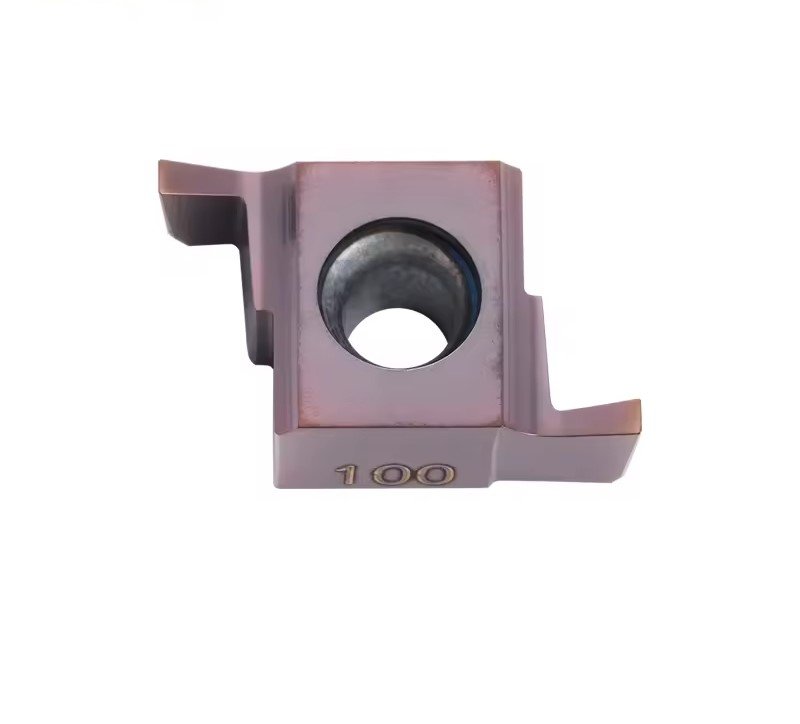

Swiss-type Lathe Cutting Insert-GR

Swiss-type Lathe Cutting Insert-GR

型号 Model 尺寸 Dimension W A B T D L R 6GR100 1.0 4.76 6.4 2.34 2.3 5.56 0.2 6GR110...

SPECIFICATIONS
