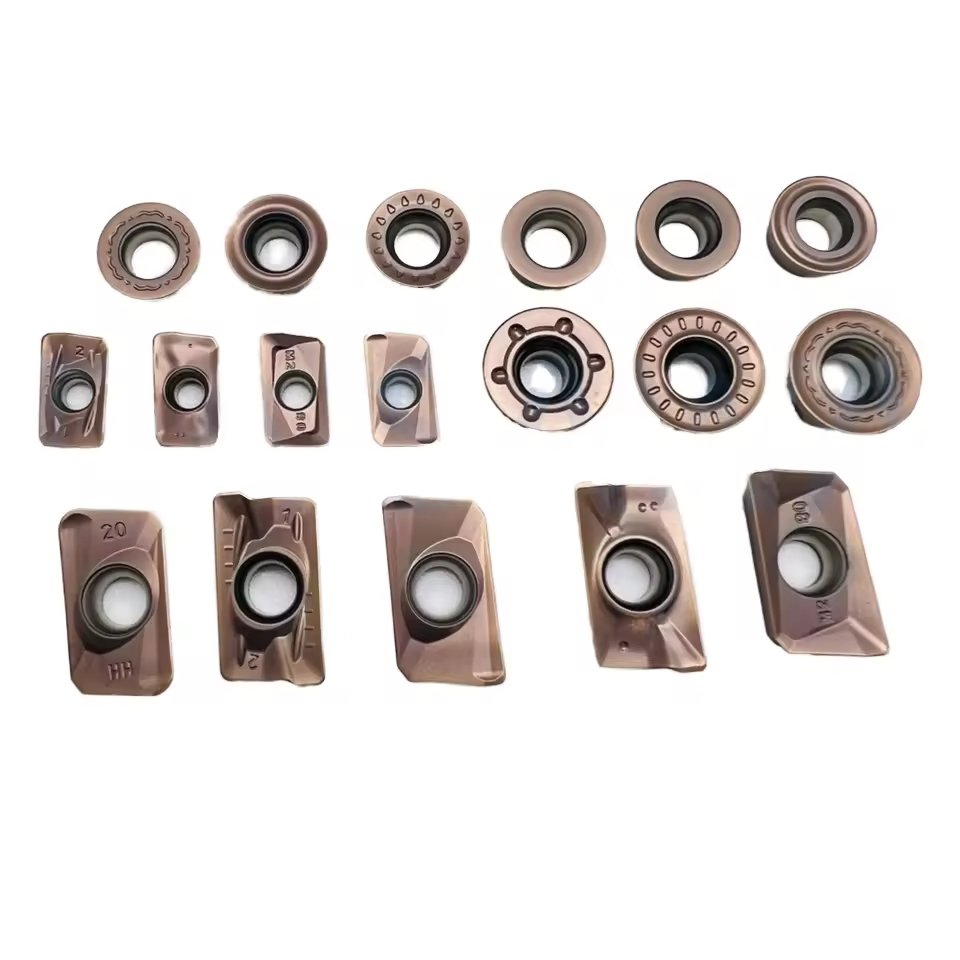

Milling Insert

型号 Model 尺寸 Dimension(mm) W L S d R APKT160408-ZPM 9.33 17.877 5.76 4.4 0.8 APKT1705PER-EM 10.7 16.1 5.56 4.45 APKT170516R-EM 10.7 16.1 5.56 4.45 APMT1135PDER-H2L 6.35 11 3.5 2.8 0.8 APMT1604PDER-H2L 9.525 17.5 4.76 4.4 0.8 APMT1135PDER-M2L 6.35 11 3.5 2.8 0.8 APMT1604PDER-M2L 9.525 17.5 4.76 4.4 0.8 APMT1135PDER-XDU 6.35 11 3.5 2.8 0.8 […]

REQUEST QUOTE DOWNLOAD SPECS

QUALITY

ISO 9001

PRODUCT OVERVIEW

型号 Model	尺寸 Dimension(mm)
型号 Model	W	L	S	d	R
APKT160408-ZPM	9.33	17.877	5.76	4.4	0.8
APKT1705PER-EM	10.7	16.1	5.56	4.45
APKT170516R-EM	10.7	16.1	5.56	4.45
APMT1135PDER-H2L	6.35	11	3.5	2.8	0.8
APMT1604PDER-H2L	9.525	17.5	4.76	4.4	0.8
APMT1135PDER-M2L	6.35	11	3.5	2.8	0.8
APMT1604PDER-M2L	9.525	17.5	4.76	4.4	0.8
APMT1135PDER-XDU	6.35	11	3.5	2.8	0.8
APMT1604PDER-XDU	9.525	17.5	4.76	4.4	0.8
APMT11T308-ZM	6.35	11	3.5	2.8	0.8
APMT160408-ZM	9.525	17.5	4.76	4.4	0.8
ADMT070204	4.3	6.4	2.45		0.4
ADMT070208	4.3	6.4	2.45		0.8
ADMT070220	4.3	6.4	2.45		2
ADMT120408-ME	12.6	12.6	3.9		0.8
BDMT11T308ER-JT	6.7	11	3.8	2.8	0.8
BDMT11T316ER-IT	6.7	11	3.8	2.8	1.6
EPMT0603TN-8	6.35	10	3.18		8
BLMP0603R-M	6.4	6.5	3.42	3.2	1
BLMP0904R-M	9.2	9.5	4.11	4.15	1.2
EPNW0603TN-8	6.35	10	3.18		8
JDMT080308L	3.18	8	3.5	1.4	0.8
JDMT090308R	3.97	9.525	3.5	1.8	0.8
JDMT100308R	6.1	11	3.5	2.8	0.8
LNMU0303ZER-MJ	6	11	3.9	2.9	1.2
LOGU030310ER-GM	6.2	11.9	3.96	3.45	10
P3200-D08	8	4	2	3
P3200-D10	10	5	2.5	4
P3200-D12	12	6	2.5	5
P3200-D16	16	6	3	5
P3200-D20	20	6	3	5
P3200-D25	25	9	4	6
P3200-D30	30	10	5	8
P3200-D32	32	10	5	8

型号 Model	尺寸 Dimension(mm)
型号 Model	L	IC	S	d	R
3PKT100404R-M	10.5	6.9	4	3.5	0.4
3PKT100408R-M	10.5	6.9	4	3.5	0.8
3PKT150508R-M	15.5	10.7	4.96	5	0.8
3PKT150516R-M	15.5	10.7	4.96	5	1.6
3PKT150520R-M	15.5	10.7	4.96	5	2
4NKT060308R-M	6.5	6.6	4.6	3.3	0.8

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	d	a	R
JDMW080320ZZSR-FT	8	3.18		1.4	2
JDMW120420ZDSR-FT	12	4.76		2.5	2

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	L	S	d	R
MPHT060304-ZDM	6.35	6.35	3.18	2.8	0.4
MPHT080305-ZDM	8.3	8.3	3.18	3.4	0.5
MPHT120408-ZDM	12.7	12.7	4.76	5.56	0.8

型号 Model	尺寸 Dimension(mm)
型号 Model	W	L	S	a	R
R390-11T308M-PM	6.8	10	3.59	1.2	0.8
R390-180612M-PM	11	15.4	6.33	1.11	1.2

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	d
RDEW1003MO-BG	10	3.18	4.4
RDKT1204MO-Q	12	4.76	4.4
RDKX10T3MO-QBG	10	3.97	4.4
RDKX1204MO-QBG	12	4.76	4.4
RDKX1605MO-QBG	16	5.56	5.56
RDKW10T3MO-QBG	10	3.97	4.4
RDKW1204MO-QBG	12	4.76	4.4
RDKW1604MO-QBG	16	5.56	5.5
RDKW1605MO-QBG	16	5.56	5.5
RDKW1606MO-QBG	16	6.35	5.5
RDKW2006M0-Q	20	6.35	6.55
RDMT10T3MO-RL	10	3.97
RDMT1204MO-RL	12	4.76
RPEW0802MO-QBG	8	2.38	3.4
RPEW1003MO-QBG	10	3.18	4.4
RPMT08T2MOE-JSL	8	2.78	2.94
RPMT1003MOE-JSL	10	3.97	4.4
RPMT10T3MOE-JSL	10	3.97	4.4
RPMT1204MOE-JSL	12	4.76	4.4
RPMT1606MOX	16	6.35	5.5
RPKT10T3MOF-Q	10	3.18	4.6
RPKT1204MOF-Q	12	4.76	4.6
RPKT1204MO-SD	12	4.76	4.6
RPMW1003MO-L	10	3.18	4.6
RPMW1003MO-SD	10	3.18	4.6

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	L	S	d	R
SDMT09T312-ZDM	8.525	9.525	3.97	4	1.2
SDMT120512-GMX	12.7	12.7	4.76	4.4	1.2
SDMT150512-GMX	15.95	15.95	5.65	5.5	1.2
SEET120308PER-QPM	13.29	13.29	4.042	4.1	R0.784
SEET12T3-QPM	13.4	13.4	3.97	4.1	2.55
SPMT090308	9.525	9.525	3.18	3.5	0.8
SPMT120416	12.7	12.7	4.76	5.5	0.8
SPMT120408-KM-1	12.7	12.7	4.76	5.5	0.8
TPKN160304	9.525	16.5	3.18	1.2	0.4
TPKN1603PDSR-Q1	9.525	16.5	3.18	1.2	0.4
TPKN2204PDSR-Q1	12.7	22	4.76	1.4	1
WNMU040306	14	8.55	8.3	6.16	0.6
WNmU080608EN- JGM	14	8.55	8.3	6.16	0.8

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	d	R
SDNW120520TR	12.7	5.6	4.6	3
SDNW1505ZDTN- R15	15.875	5.6	5.6	15

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	d	S	a
SEHT1204AFSN	12.7	5.4	4.76	1.6

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	d	a	R
SEKR1203AZ-YTC	12.7	3.18	2.3	1.3	1.6
SNMX1205ENN-F57	12.7	6.35	5.2	1.82

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	L	S	d	a
SEMT13T3AGSR-G	13.4	13.4	3.97	–	1.8
SEKT1204AFTN-XM	12.7	12.7	4.76	5.4	2.1

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	d	S	a	R
SNGX1205ANN-F27	12.7	4.8	6.8	1.6	0.8
SNGX130620-M	13	4.8	6.8	1.6	2

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	a
SPKN1203EDSR-Q1	12.7	3.18	1.481
SPKN1504EDSR-Q1	15.875	4.76	1.068

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	L	S	R	a
TPMR1603PPR-EM-Q1	9.525	16.5	3.18	–
TPMR160304-Q1	9.525	16.5	3.18	0.4
TPMR160308-Q1	9.525	16.5	3.18	0.8

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	d	f	R
WNmX09T316ZNN-mm	12.7	4.8	5.4	1.7	1.6

型号 Model	尺寸 Dimension(mm)
型号 Model	IC	S	L	a	R
XNEX080608TR-M13	12.48	6.45	7.5	1.3	0.8

TECHNICAL SPECIFICATIONS

QUICK SPECS

Material Grade K10-K40

Hardness 92+ HRA

Tolerance ±0.001"

Surface Finish Ra 0.1μm

PERFORMANCE GUARANTEE

30% LONGER TOOL LIFE
