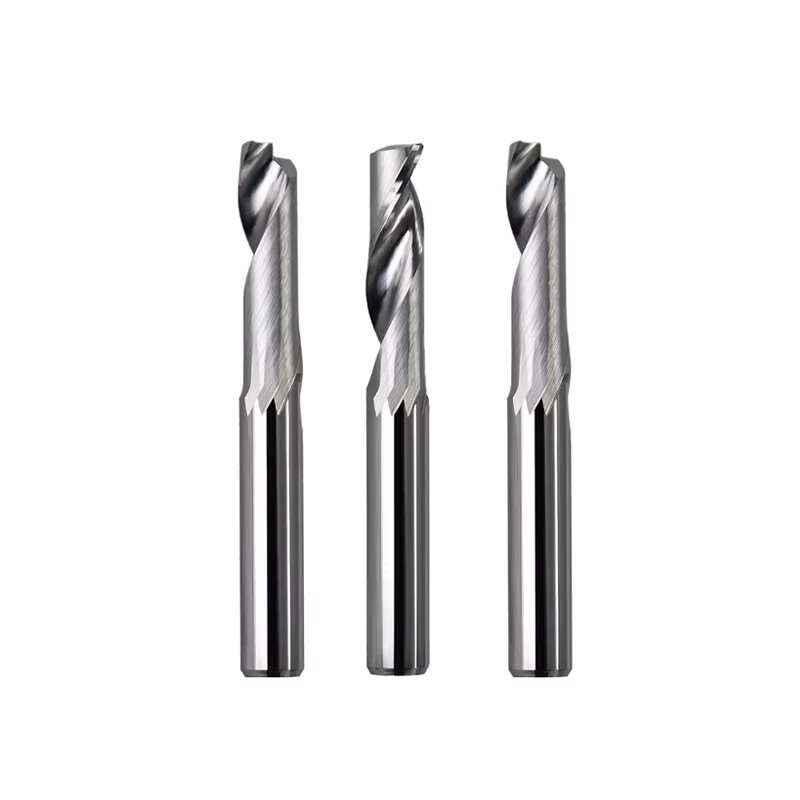

Single Flute Carbide End Mill for Woodworking/Aluminum

型号 Model 规格 specification(mm) 刃数 Flutes Cutting Dia.(D) Flute length(Lc) Shank Dia. (d) Overall length(L) 1*4*3.175*38 1 4 3.175 38 1 1.5*6*3.175*38 1.5 6 3.175 38 1 1.5*8*3.175*38 1.5 8 3.175 38 1 1.5*12*3.175*38 1.5 12 3.175 38 1 2*8*3.175*38 2 8 3.175 38 1 2*12*3.175*38 2 12 3.175 38 1 2*17*3.175*38 2 17 3.175 […]

GRADE
K10-K40
TOLERANCE
±0.001"
Single Flute Carbide End Mill for Woodworking/Aluminum

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Cutting Dia.(D) Flute length(Lc) Shank Dia. (d) Overall length(L)
1*4*3.175*38 1 4 3.175 38 1
1.5*6*3.175*38 1.5 6 3.175 38 1
1.5*8*3.175*38 1.5 8 3.175 38 1
1.5*12*3.175*38 1.5 12 3.175 38 1
2*8*3.175*38 2 8 3.175 38 1
2*12*3.175*38 2 12 3.175 38 1
2*17*3.175*38 2 17 3.175 38 1
2*22*3.175*38 2 22 3.175 38 1
2.5*10*3.175*38 2.5 10 3.175 38 1
2.5*12*3.175*38 2.5 12 3.175 38 1
2.5*17*3.175*38 2.5 17 3.175 38 1
2.5*22*3.175*45 2.5 22 3.175 38 1
3.175*12*3.175*38 3.175 12 3.175 38 1
3.175*15*3.175*38 3.175 15 3.175 38 1
3.175*17*3.175*38 3.175 17 3.175 38 1
3.175*22*3.175*45 3.175 22 3.175 45 1
3.175*25*3.175*50 3.175 25 3.175 50 1
3.175*32*3.175*60 3.175 32 3.175 60 1
4*12*4*45 4 12 4 45 1
4*15*4*45 4 15 4 45 1
4*17*4*45 4 17 4 45 1
4*22*4*45 4 22 4 45 1
4*25*4*50 4 25 4 50 1
4*32*4*60 4 32 4 60 1
5*17*5*45 5 17 5 45 1
5*22*5*45 5 22 5 45 1
5*25*5*50 5 25 5 50 1
5*32*5*60 5 32 5 60 1
6*17*6*45 6 17 6 45 1
6*22*6*45 6 22 6 45 1
6*32*6*60 6 32 6 60 1
6*42*6*70 6 42 6 70 1
8*22*8*50 8 22 8 50 1
8*25*8*60 8 25 8 60 1
8*32*8*60 8 32 8 60 1
8*52*8*80 8 52 8 80 1
10*32*10*70 10 32 10 70 1
10*42*10*80 10 42 10 80 1
10*52*0*90 10 52 10 90 1
12*32*12*70 12 32 12 70 1
12*42*12*80 12 42 12 80 1
12*52*12*90 12 52 12 90 1
