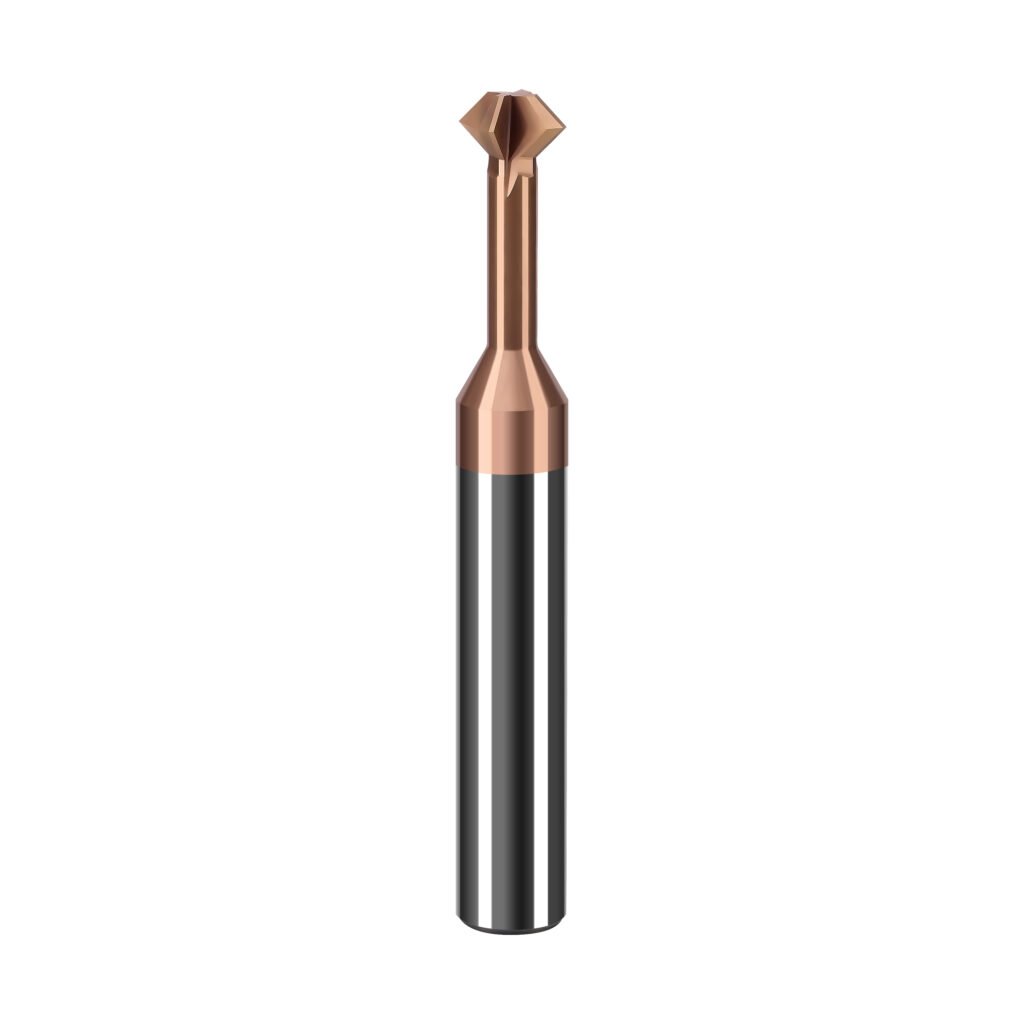

Coating Upper and Lower Carbide Chamfering Cutter

刃径Cutting diameter(D) 避空直径 Avoidance diameter (D1) 柄径 Shank dliameter(d) 全长 Overdl length(L) 有效长 Effective length(L1) L2 L3 Cmax 角度 Angle 3 1.8 3 50 12 11.4 27.0 0.6 60°/90° 4 2.4 4 50 16 15.2 27.5 0.8 60°/90° 5 2.8 5 50 20 18.9 28.0 1.1 60°/90° 6 3 6 58 24 22.5 33.5 1.5 […]

GRADE

K10-K40

TOLERANCE

±0.001"

Coating Upper and Lower Carbide Chamfering Cutter

Product Overview

刃径Cutting diameter(D)	避空直径 Avoidance diameter (D1)	柄径 Shank dliameter(d)	全长 Overdl length(L)	有效长 Effective length(L1)	L2	L3	Cmax	角度 Angle
3	1.8	3	50	12	11.4	27.0	0.6	60°/90°
4	2.4	4	50	16	15.2	27.5	0.8	60°/90°
5	2.8	5	50	20	18.9	28.0	1.1	60°/90°
6	3	6	58	24	22.5	33.5	1.5	60°/90°
8	4.8	8	64	28	24.6	35.5	1.6	60°/90°
10	6.4	10	73	35	31.2	38.0	1.8	60°/90°
12	7.8	12	84	42	37.6	40.0	2.1	60°/90°

COMPANY OVERVIEW

QUALITY ASSURANCE

Every cutting tool undergoes rigorous quality control testing to ensure consistent performance and reliability in demanding industrial applications.

ISO 9001:2015 AS9100D

GLOBAL SUPPORT

Our worldwide network of technical specialists provides 24/7 support and rapid delivery to manufacturing facilities across 50+ countries.

Available in: North America • Europe • Asia-Pacific • Latin America

25+

Years Experience

10,000+

Tool Variants

500+

Global Partners

99.9%

Quality Rating

PERFORMANCE GUARANTEE

30% LONGER TOOL LIFE OR MONEY BACK

Performance Features

Superior Wear Resistance

Extended Tool Life

Precision Cutting Edge

Heat Resistant Coating

QUALITY GUARANTEE

ISO 9001:2015 Certified

30% Longer Tool Life

Need Technical Support?

Our engineering team is ready to help you optimize your machining operations with the right cutting tool solution.

Contact Specialist

Coating Upper and Lower Carbide Chamfering Cutter
