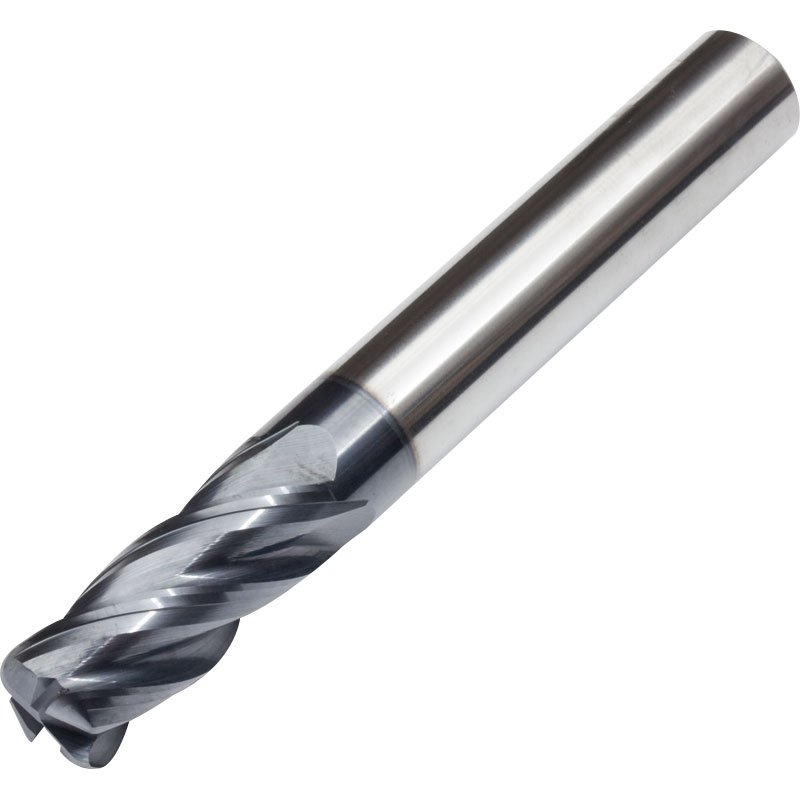

60 Series 4 Flutes Carbide Corner Radius End Mill

型号 Model 规格 specification(mm) 刃数 Flutes R Angle Cutting, diameter (D) Flute length(Lc) Shank diameter (d) Overall length(L) 1*3*4*50 0.2 1 3 4 50 4 1.5*4*4*50 0.2 1.5 4 4 50 4 2*5*4*50 0.2 2 5 4 50 4 3*8*4*75 0.2/0.5 3 8 4 75 4 4*10*4*50 0.5 4 10 4 50 4 4*16*4*75 0.5 […]

Coating
altisin
Flutes
4
Helix Angle
35
GRADE
K10-K40
TOLERANCE
±0.001"
60 Series 4 Flutes Carbide Corner Radius End Mill

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
R Angle Cutting, diameter (D) Flute length(Lc) Shank diameter (d) Overall length(L)
1*3*4*50 0.2 1 3 4 50 4
1.5*4*4*50 0.2 1.5 4 4 50 4
2*5*4*50 0.2 2 5 4 50 4
3*8*4*75 0.2/0.5 3 8 4 75 4
4*10*4*50 0.5 4 10 4 50 4
4*16*4*75 0.5 4 16 4 75 4
4*20*4*100 0.5 4 20 4 100 4
5*13*5*50 0.5/1 5 13 5 50 4
5*20*5*75 0.5/1 5 20 5 75 4
5*25*5*100 0.5/1 5 25 5 100 4
6*15*6*50 0.5/1 6 15 6 50 4
5*13*6*50 0.5/1 5 13 6 50 4
6*25*6*75 0.5/1 6 25 6 75 4
6*30*6*100 0.5/1 6 30 6 100 4
6*40*6*150 0.5/1 6 40 6 150 4
8*20*8*60 0.5/1 8 20 8 60 4
8*28*8*75 0.5/1 8 28 8 75 4
8*35*8*100 0.5/1 8 35 8 100 4
8*50*8*150 0.5/1 8 50 8 150 4
10*25*10*75 0.5/1 10 25 10 75 4
10*40*10*100 0.5/1 10 40 10 100 4
10*50*10*150 0.5/1 10 50 10 150 4
12*30*12*75 0.5/1 12 30 12 75 4
12*45*12*100 0.5/1 12 45 12 100 4
12*60*12*150 0.5/1 12 60 12 150 4
