60 Series 2 Flutes Carbide Ball Nose End Mill

型号 Model 规格 specification(mm) 刃数 Flutes Cutting Radius(R) Flute length(Lc) Shank Dia. (d) Overall length(L) R0.5*2*4*50 0.5 2 4 50 2 R0.75*3*4*50 0.75 3 4 50 2 R1*4*4*50 1 4 4 50 2 R1.25*5*4*50 1.25 5 4 50 2 Rl.5*6*4*50 1.5 6 4 50 2 R1.75*7*4*50 1.75 7 4 50 2 R2*8*4*50 2 8 4 […]

Coating
altisin
Flutes
2
Helix Angle
30
GRADE
K10-K40
TOLERANCE
±0.001"

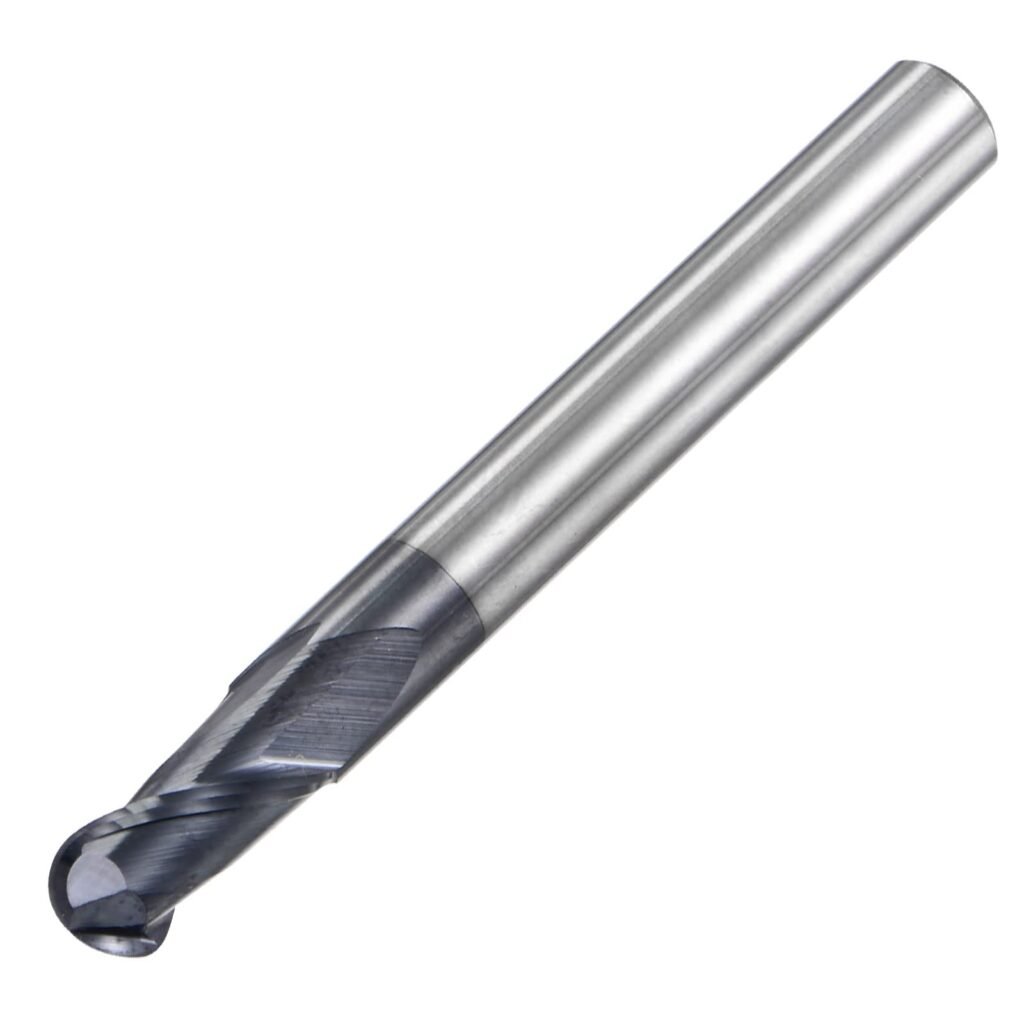

60 Series 2 Flutes Carbide Ball Nose End Mill

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Cutting Radius(R) Flute length(Lc) Shank Dia. (d) Overall length(L)
R0.5*2*4*50 0.5 2 4 50 2
R0.75*3*4*50 0.75 3 4 50 2
R1*4*4*50 1 4 4 50 2
R1.25*5*4*50 1.25 5 4 50 2
Rl.5*6*4*50 1.5 6 4 50 2
R1.75*7*4*50 1.75 7 4 50 2
R2*8*4*50 2 8 4 50 2
R2*8*4*75 2 8 4 75 2
R2*8*4*100 2 8 4 100 2
R2.5*10*5*50 2.5 10 5 50 2
R2.5*10*5*75 2.5 10 5 75 2
R2.5*10*5*100 2.5 10 5 100 2
R3*12*6*50 3 12 6 50 2
R3*12*6*75 3 12 6 75 2
R3*12*6*100 3 12 6 100 2
R3*12*5*150 3 12 6 150 2
R3.5*14*8*60 3.5 14 8 60 2
R4*16*8*60 4 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 4 16 8 100 2
R4*16*8*150 4 16 8 150 2
R4.5*18*10*75 4.5 18 10 75 2
R5*20*10*75 5 20 10 75 2
R5*20*10*100 5 20 10 100 2
R5*20*10*150 5 20 10 150 2
R5.5*22*12*75 5.5 22 12 75 2
R6*24*12*75 6 24 12 75 2
R6*24*12*100 6 24 12 100 2
R6*24*12*150 6 24 12 150 2
R7*28*14*100 7 28 14 100 2
R7*28*14*150 7 28 14 150 2
R8*32*16*100 8 32 16 100 2
R8*32*16*150 8 32 16 150 2
R9*36*16*100 9 36 18 100 2
R9*36*16*150 9 36 18 150 2
R10*40*20*100 10 40 20 100 2
R10*40*20*150 10 40 20 150 2

COMPANY OVERVIEW

QUALITY ASSURANCE

Every cutting tool undergoes rigorous quality control testing to ensure consistent performance and reliability in demanding industrial applications.

ISO 9001:2015 AS9100D

GLOBAL SUPPORT

Our worldwide network of technical specialists provides 24/7 support and rapid delivery to manufacturing facilities across 50+ countries.

Available in: North America • Europe • Asia-Pacific • Latin America
25+
Years Experience
10,000+
Tool Variants
500+
Global Partners
99.9%
Quality Rating
PERFORMANCE GUARANTEE
30% LONGER TOOL LIFE OR MONEY BACK

Performance Features

Superior Wear Resistance
Extended Tool Life
Precision Cutting Edge
Heat Resistant Coating
QUALITY GUARANTEE
ISO 9001:2015 Certified
30% Longer Tool Life

Need Technical Support?

Our engineering team is ready to help you optimize your machining operations with the right cutting tool solution.

Contact Specialist

Related Products

Explore our complete range of precision cutting tools

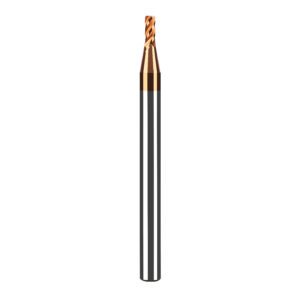

55 Series 2 Flutes Micro Carbide End Mill
