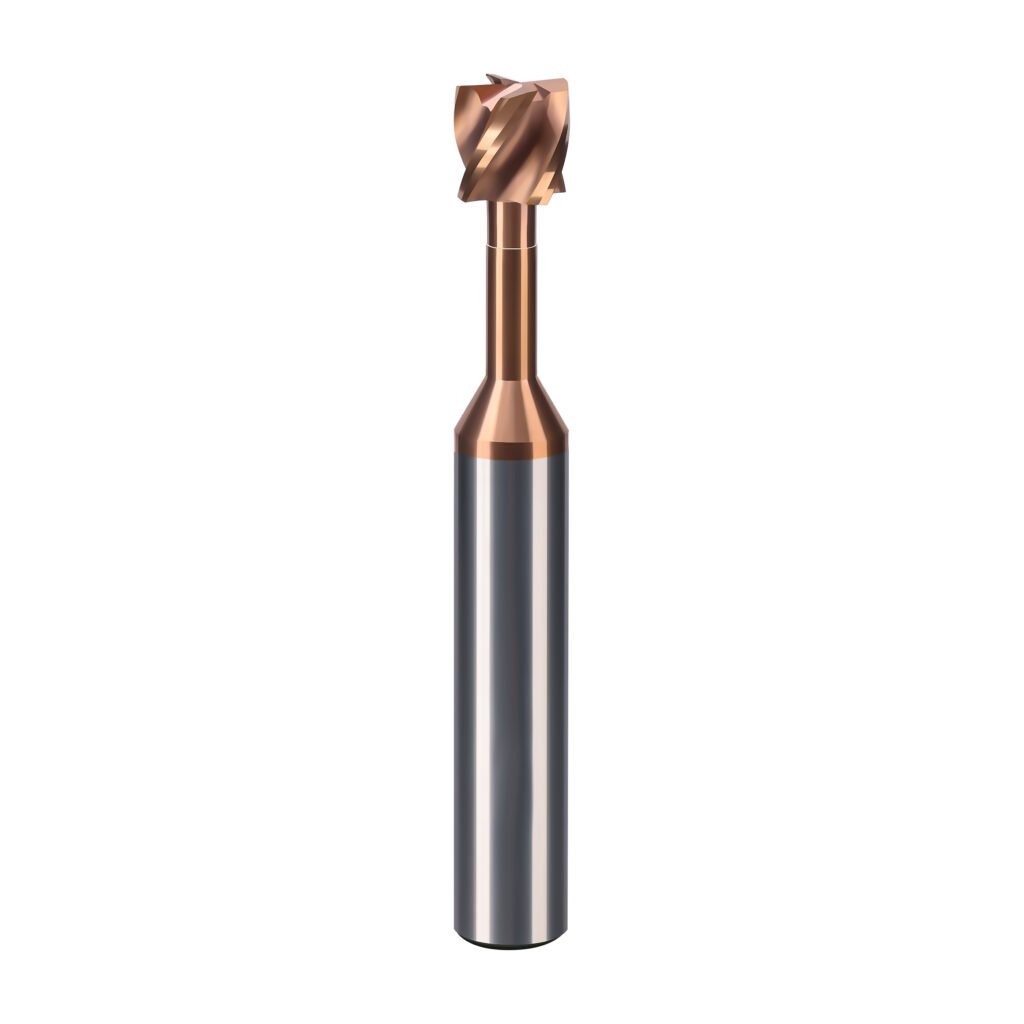

55 Series Coated T-slot Carbide Milling Cutter

刃径d1 Cutting diameter 厚度L1 Thickness 颈径d2 Deep neck diameter 颈长L2 Deep neck 柄径d Shank diameter 总长L Overall length 刃数 Flutes 3 1/1.5/2/2.5/3 1.5 6 4 50 4 4 1/1.5/2/2.5/3 2 6 4 50 4 5 1/1.5/2/2.5/3 2.5 10 5 50 4 6 1/1.5/2/2.5/3 3 10 6 50 4 8 1/1.5/2/2.5/3 4 12 8 60 6 […]

GRADE

K10-K40

TOLERANCE

±0.001"

55 Series Coated T-slot Carbide Milling Cutter

Product Overview

刃径d1 Cutting diameter	厚度L1 Thickness	颈径d2 Deep neck diameter	颈长L2 Deep neck	柄径d Shank diameter	总长L Overall length	刃数 Flutes
3	1/1.5/2/2.5/3	1.5	6	4	50	4
4	1/1.5/2/2.5/3	2	6	4	50	4
5	1/1.5/2/2.5/3	2.5	10	5	50	4
6	1/1.5/2/2.5/3	3	10	6	50	4
8	1/1.5/2/2.5/3	4	12	8	60	6
9	1/1.5/2/2.5/3	4.5	15	9	60	6
10	1/1.5/2/2.5/3	5	15	10	60	6
12	1/1.5/2/2.5/3/4	6	15	12	60	6
14	1/1.5/2/2.5/3/4/5	7	20	14	65	6
16	1/1.5/2/2.5/3/4/5	8	20	16	65	6
20	1/1.5/2/2.5/3/4/5/6	10	25	20	65	6
