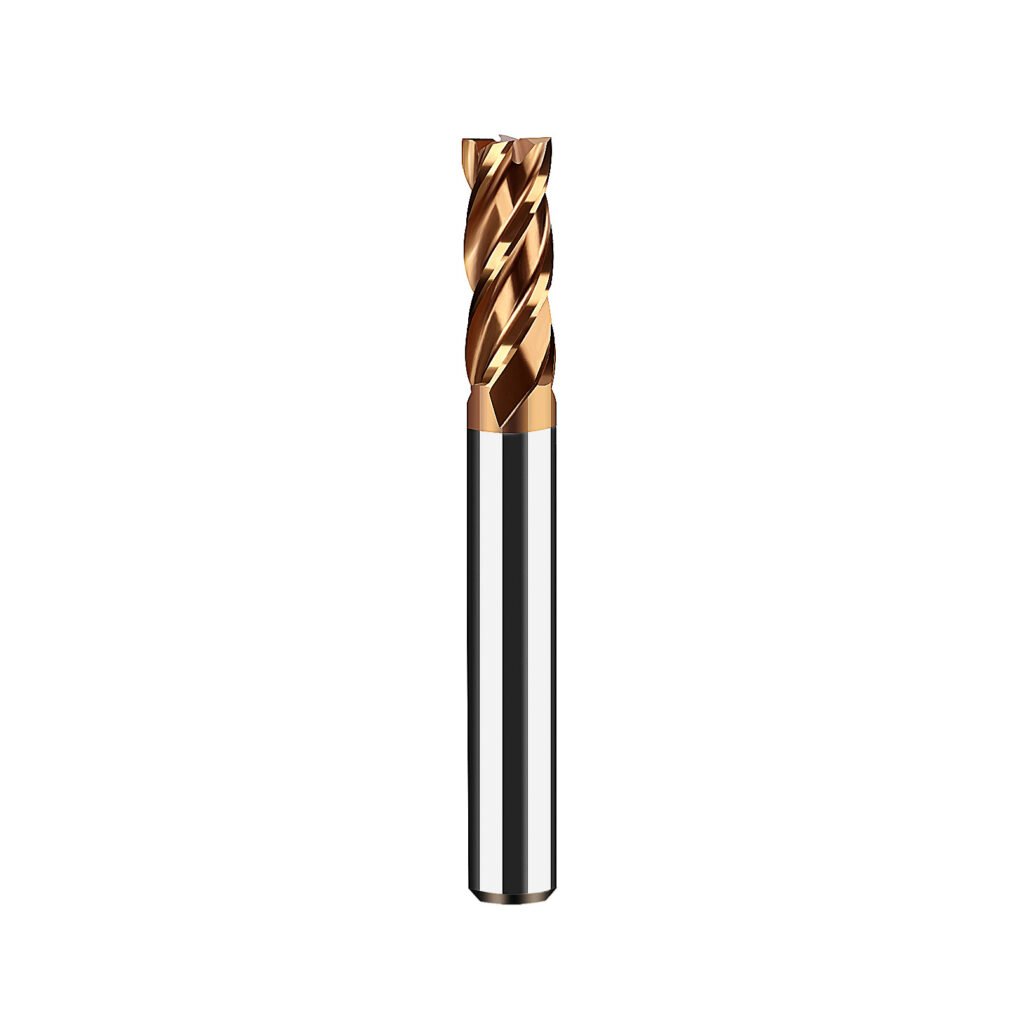

55 Series 4 Flutes Carbide End Mill

型号 Model 规格 specification(mm) 刃数 Flutes Cutting Dia(D) Flute length(Lc) Shank Dia. (d) Overall length(L) 1*3*4*50 1 3 4 50 4 1.5*4*4*50 1.5 4 4 50 4 2*5*4*50 2 5 4 50 4 2.5*7*4*50 2.5 7 4 50 4 3*8*4*50 3 8 4 50 4 3.5*10*4*50 3.5 10 4 50 4 4*10*4*50 4 10 4 […]

Coating
tisin
Flutes
4
Helix Angle
35
GRADE
K10-K40
TOLERANCE
±0.001"
55 Series 4 Flutes Carbide End Mill

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Cutting Dia(D) Flute length(Lc) Shank Dia. (d) Overall length(L)
1*3*4*50 1 3 4 50 4
1.5*4*4*50 1.5 4 4 50 4
2*5*4*50 2 5 4 50 4
2.5*7*4*50 2.5 7 4 50 4
3*8*4*50 3 8 4 50 4
3.5*10*4*50 3.5 10 4 50 4
4*10*4*50 4 10 4 50 4
4*16*4*75 4 16 4 75 4
4*20*4*100 4 20 4 100 4
5*13*5*50 5 13 5 50 4
5*20*5*75 5 20 5 75 4
5*25*5*100 5 25 5 100 4
1*3*6*50 1 3 6 50 4
1.5*4*6*50 1.5 4 6 50 4
2*5*6*50 2 5 6 50 4
2.5*7*6*50 2.5 7 6 50 4
3*8*6*50 3 8 6 50 4
3.5*10*6*50 3.5 10 6 50 4
4*10*6*50 4 10 6 50 4
4.5*12*6*50 4.5 12 6 50 4
5*13*6*50 5 13 6 50 4
6*15*6*50 6 15 6 50 4
6*25*6*75 6 25 6 75 4
6*30*6*100 6 30 6 100 4
6*40*6*150 6 40 6 150 4
7*18*8*60 7 18 8 60 4
8*20*8*60 8 20 8 60 4
8*25*8*75 8 25 8 75 4
8*35*8*100 8 35 8 100 4
8*50*8*150 8 50 8 150 4
9*23*10*75 9 23 10 75 4
10*25*10*75 10 25 10 75 4
10*40*10*100 10 40 10 100 4
10*50*10*150 10 50 10 150 4
11*28*12*75 11 28 12 75 4
12*30*12*75 12 30 12 75 4
12*45*12*100 12 45 12 100 4
12*60*12*150 12 60 12 150 4
14*45*14*100 14 45 14 100 4
14*60*14*150 14 60 14 150 4
16*45*16*100 16 45 16 100 4
16*60*16*150 16 60 16 150 4
18*45*18*100 18 45 18 100 4
18*70*18*150 18 70 18 150 4
20*45*20*100 20 45 20 100 4
20*70*20*150 20 70 20 150 4

COMPANY OVERVIEW

QUALITY ASSURANCE

Every cutting tool undergoes rigorous quality control testing to ensure consistent performance and reliability in demanding industrial applications.

ISO 9001:2015 AS9100D

GLOBAL SUPPORT

Our worldwide network of technical specialists provides 24/7 support and rapid delivery to manufacturing facilities across 50+ countries.

Available in: North America • Europe • Asia-Pacific • Latin America
25+
Years Experience
10,000+
Tool Variants
500+
Global Partners
99.9%
Quality Rating
PERFORMANCE GUARANTEE
30% LONGER TOOL LIFE OR MONEY BACK

Performance Features

Superior Wear Resistance
Extended Tool Life
Precision Cutting Edge
Heat Resistant Coating
QUALITY GUARANTEE
ISO 9001:2015 Certified
30% Longer Tool Life

Need Technical Support?

Our engineering team is ready to help you optimize your machining operations with the right cutting tool solution.

Contact Specialist

Related Products

Explore our complete range of precision cutting tools

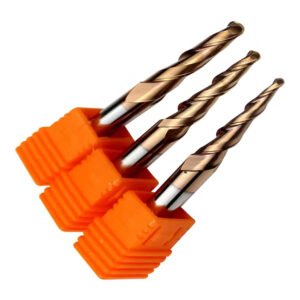

55 Series 2 Flutes Tapered Carbide Ball Nose End Mill
