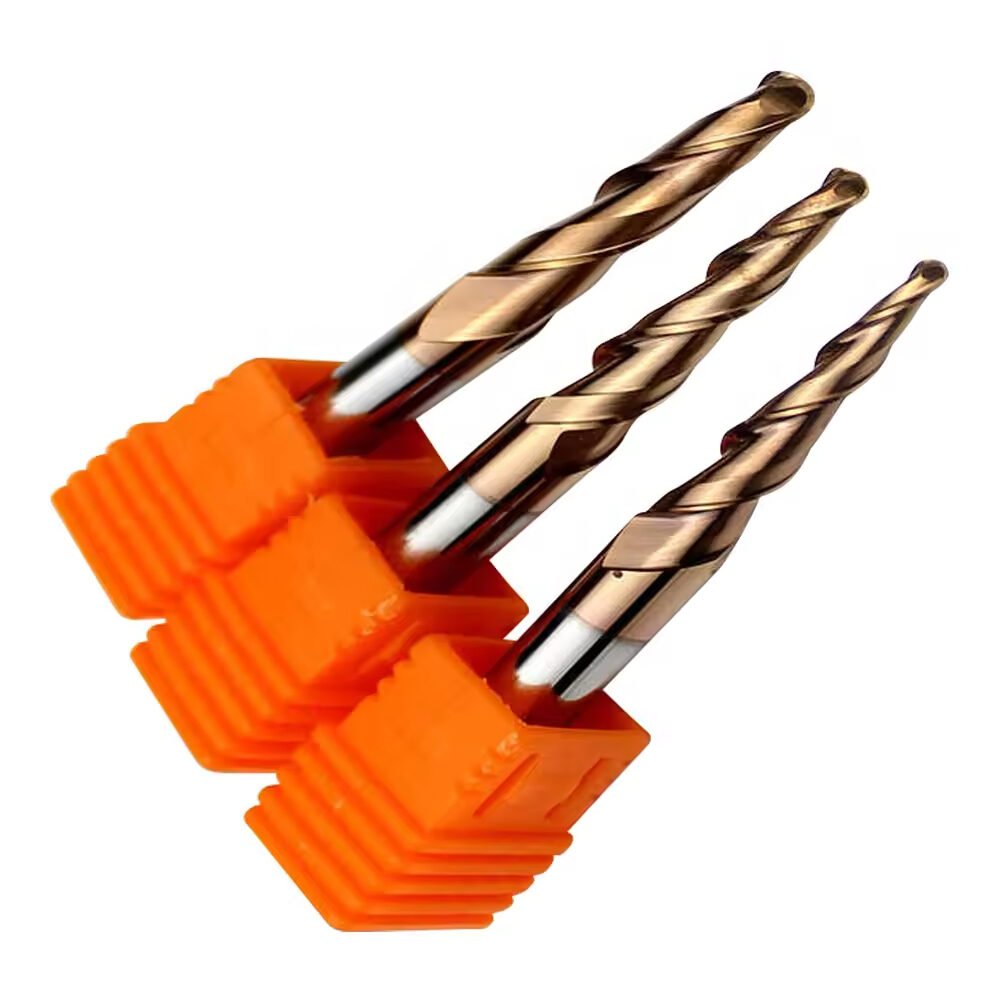

55 Series 2 Flutes Tapered Carbide Ball Nose End Mill

型号 Model 规格 specification(mm) 刃数 Flutes Radius(R) Cutting Radius (D) Flute length(Lc) Shank diameter (d) Overall length(L) R0.25*15*3.175*38 0.25 0.5 15 3.175 38 2 R0.5*15*3.175*38 0.5 1 15 3.175 38 2 R0.25*15*4*50 0.25 0.5 15 4 50 2 R0.5*15*4*50 0.5 1 15 4 50 2 R0.75*15*4*50 0.75 1.5 15 4 50 2 R1*15*4*50 1 2 […]

Coating
tisin
Flutes
2
Helix Angle
30
GRADE
K10-K40
TOLERANCE
±0.001"
55 Series 2 Flutes Tapered Carbide Ball Nose End Mill

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Radius(R) Cutting Radius (D) Flute length(Lc) Shank diameter (d) Overall length(L)
R0.25*15*3.175*38 0.25 0.5 15 3.175 38 2
R0.5*15*3.175*38 0.5 1 15 3.175 38 2
R0.25*15*4*50 0.25 0.5 15 4 50 2
R0.5*15*4*50 0.5 1 15 4 50 2
R0.75*15*4*50 0.75 1.5 15 4 50 2
R1*15*4*50 1 2 15 4 50 2
R0.25*20.5*4*50 0.25 0.5 20.5 4 50 2
R0.5*20.5*4*50 0.5 1 20.5 4 50 2
R0.75*20.5*4*50 0.75 1.5 20.5 4 50 2
R1*20.5*4*50 1 2 20.5 4 50 2
R0.25*20.5*4*75 0.25 0.5 20.5 4 75 2
R0.5*20.5*4*75 0.5 1 20.5 4 75 2
R0.25*20.5*6*50 0.25 0.5 20.5 6 50 2
R0.5*20.5*6*50 0.5 1 20.5 6 50 2
R0.75*20.5*6*75 0.75 1.5 20.5 6 50 2
R0.25*30.5*6*75 0.25 0.5 30.5 6 75 2
R0.5*30.5*6*75 0.5 1 30.5 6 75 2
R0.75*30.5*6*75 0.75 1.5 30.5 6 75 2
R1*30.5*6*75 1 2 30.5 6 75 2
Rl.5*30.5*6*75 1.5 3 30.5 6 75 2
R2*30.5*6*75 2 4 30.5 6 75 2
R2*60*6*100 2 4 60 6 100 2
R0.5*47*6*85 0.5 1 47 8 85 2
R1*47*8*85 1 2 47 8 85 2
Rl.5*47*8*85 1.5 3 47 8 85 2
R2*47*8*85 2 4 47 8 85 2
R0.5*60*8*100 0.5 1 60 8 100 2
R1*60*8*100 1.5 2 60 8 100 2
R1.5*60**8*100 1.5 3 60 8 100 2
R2*60*8*100 2 4 60 8 100 2
R2*70*10*110 2 4 70 10 110 2
R2*70*12*120 2 4 70 12 120 2
R2*100*12*150 2 4 100 12 150 2
