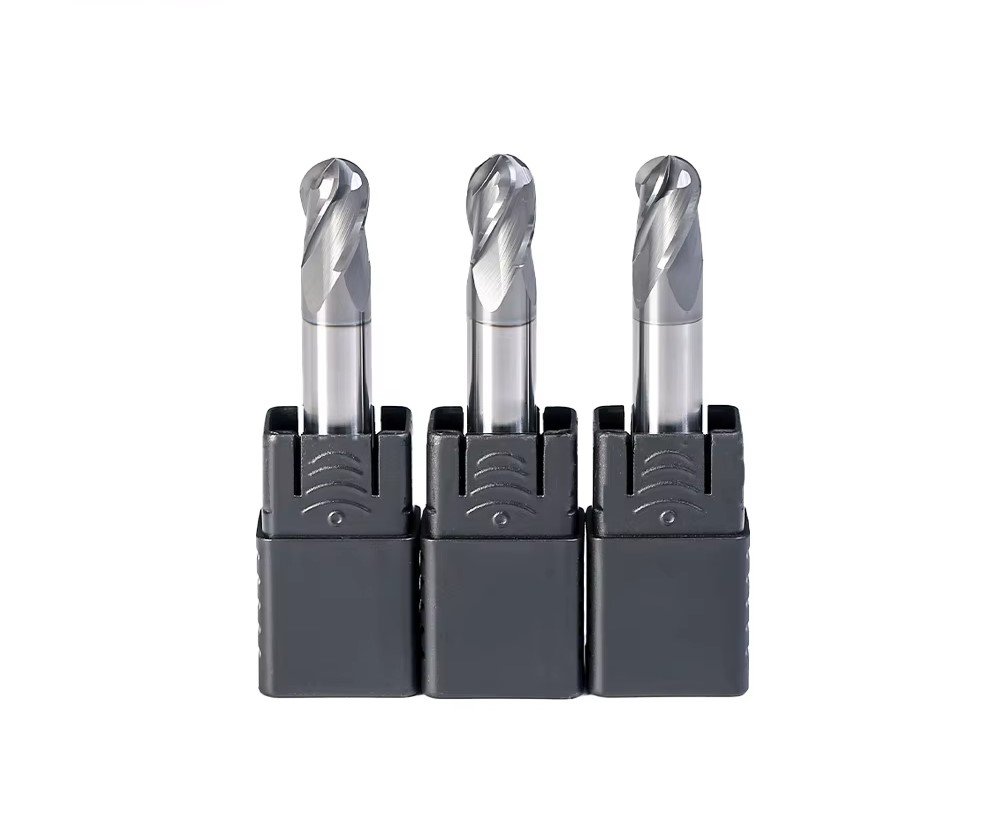

45 Series 4 Flutes Carbide Ball Nose End Mill

型号 Model 规格 specification(mm) 刃数 Flutes Cutting Radius(R) Flute length(Lc) Shank Dia. (d) Overall length(L) R0.5*2*4*50 0.5 2 4 50 4 R0.75*3*4*50 0.75 3 4 50 4 R1*4*4*50 1 4 4 50 4 Rl.25*5*4*50 1.25 5 4 50 4 R1.5*6*4*50 1.5 6 4 50 4 R1.75*7*4*50 1.75 7 4 50 4 R2*8*4*50 2 8 4 […]

Coating
altisin
Flutes
4
Helix Angle
30
GRADE
K10-K40
TOLERANCE
±0.001"
45 Series 4 Flutes Carbide Ball Nose End Mill

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Cutting Radius(R) Flute length(Lc) Shank Dia. (d) Overall length(L)
R0.5*2*4*50 0.5 2 4 50 4
R0.75*3*4*50 0.75 3 4 50 4
R1*4*4*50 1 4 4 50 4
Rl.25*5*4*50 1.25 5 4 50 4
R1.5*6*4*50 1.5 6 4 50 4
R1.75*7*4*50 1.75 7 4 50 4
R2*8*4*50 2 8 4 50 4
R2*8*4*75 2 8 4 75 4
R2*8*4*100 2 8 4 100 4
R2.5*10*5*50 2.5 10 5 50 4
R2.5*10*5*75 2.5 10 5 75 4
R2.5*10*5*100 2.5 10 5 100 4
R3*12*6*50 3 12 6 50 4
R3*12*6*75 3 12 6 75 4
R3*12*6*100 3 12 6 100 4
R3*12*6*150 3 12 6 150 4
R4*16*8*60 4 16 8 60 4
R4*16*8*75 4 16 8 75 4
R4*16*8*100 4 16 8 100 4
R4*16*8*150 4 16 8 150 4
R5*20*10*75 5 20 10 150 4
R5*20*10*100 5 20 10 100 4
R5*20*10*150 5 20 10 150 4
R6*24*12*75 6 24 12 75 4
R6*24*12*100 6 24 12 100 4
R6*24*12*150 6 24 12 150 4
R7*28*14*100 7 28 14 100 4
R7*28*14*150 7 28 14 150 4
R8*32*16*100 8 32 16 100 4
R8*32*16*150 8 32 16 150 4
R9*36*18*100 9 36 18 100 4
R9*36*18*150 9 36 18 150 4
R10*40*20*100 10 40 20 100 4
R10*40*20*150 10 40 20 150 4

COMPANY OVERVIEW

QUALITY ASSURANCE

Every cutting tool undergoes rigorous quality control testing to ensure consistent performance and reliability in demanding industrial applications.

ISO 9001:2015 AS9100D

GLOBAL SUPPORT

Our worldwide network of technical specialists provides 24/7 support and rapid delivery to manufacturing facilities across 50+ countries.

Available in: North America • Europe • Asia-Pacific • Latin America
25+
Years Experience
10,000+
Tool Variants
500+
Global Partners
99.9%
Quality Rating
PERFORMANCE GUARANTEE
30% LONGER TOOL LIFE OR MONEY BACK

Performance Features

Superior Wear Resistance
Extended Tool Life
Precision Cutting Edge
Heat Resistant Coating
QUALITY GUARANTEE
ISO 9001:2015 Certified
30% Longer Tool Life

Need Technical Support?

Our engineering team is ready to help you optimize your machining operations with the right cutting tool solution.

Contact Specialist
