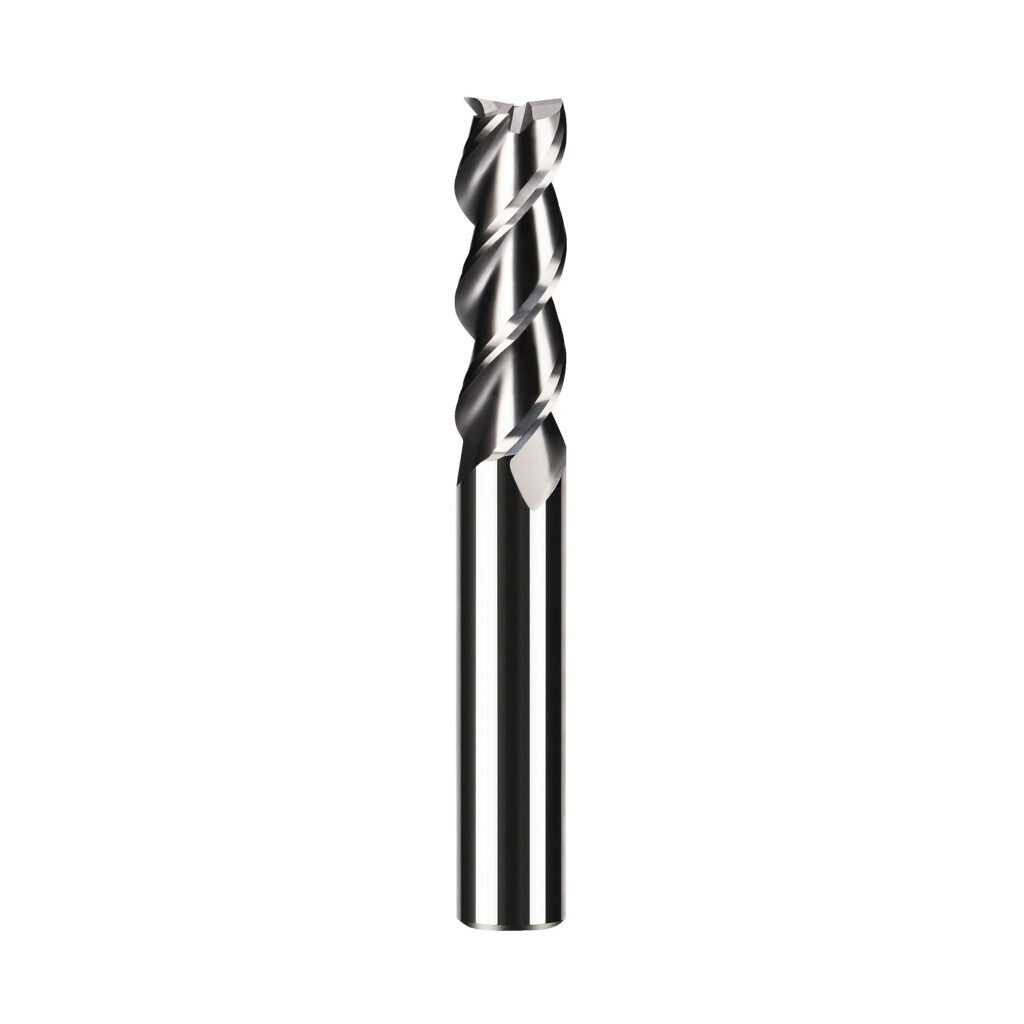

45 Series 3 Flutes Carbide End Mill for Aluminum

型号 Model 规格 specification(mm) 刃数 Flutes Cutting Dia(D) Flute length(Lc) Shank Dia. (d) Overall length(L) 1*3*4*50 1 3 4 50 3 1.5*4*4*50 1.5 4 4 50 3 2*6*4*50 2 6 4 50 3 2.5*8*4*50 2.5 8 4 50 3 3*9*4*50 3 9 4 50 3 3.5*12*4*50 3.5 12 4 50 3 4*12*4*50 4 12 4 […]

Flutes
3
Helix Angle
45
GRADE
K10-K40
TOLERANCE
±0.001"
45 Series 3 Flutes Carbide End Mill for Aluminum

Product Overview

型号 Model 规格 specification(mm) 刃数 Flutes
Cutting Dia(D) Flute length(Lc) Shank Dia. (d) Overall length(L)
1*3*4*50 1 3 4 50 3
1.5*4*4*50 1.5 4 4 50 3
2*6*4*50 2 6 4 50 3
2.5*8*4*50 2.5 8 4 50 3
3*9*4*50 3 9 4 50 3
3.5*12*4*50 3.5 12 4 50 3
4*12*4*50 4 12 4 50 3
4*20*4*75 4 20 4 75 3
4*25*4*100 4 25 4 100 3
5*15*5*50 5 15 5 50 3
5*20*5*75 5 20 5 75 3
5*25*5*100 5 25 5 100 3
6*18*6*50 6 18 6 50 3
6*30*6*75 6 30 6 75 3
6*30*6*100 6 30 6 100 3
6*40*6*150 6 40 6 150 3
8*24*8*60 8 24 8 60 3
8*35*8*75 8 35 8 75 3
8*40*8*100 8 40 8 100 3
8*50*8*150 8 50 8 150 3
10*30*10*75 10 30 10 75 3
10*40*10*100 10 40 10 100 3
10*50*10*150 10 50 10 150 3
12*36*12*75 12 36 12 75 3
12*45*12*100 12 45 12 100 3
12*60*12*150 12 60 12 150 3
14*45*14*100 14 45 14 100 3
14*65*14*150 14 65 14 150 3
16*45*16*100 16 45 16 100 3
16*65*16*150 16 65 16 150 3
18*45*18*100 18 45 18 100 3
18*70*18*150 18 70 18 150 3
20*45*20*100 20 45 20 100 3
20*70*20*150 20 70 20 150 3
